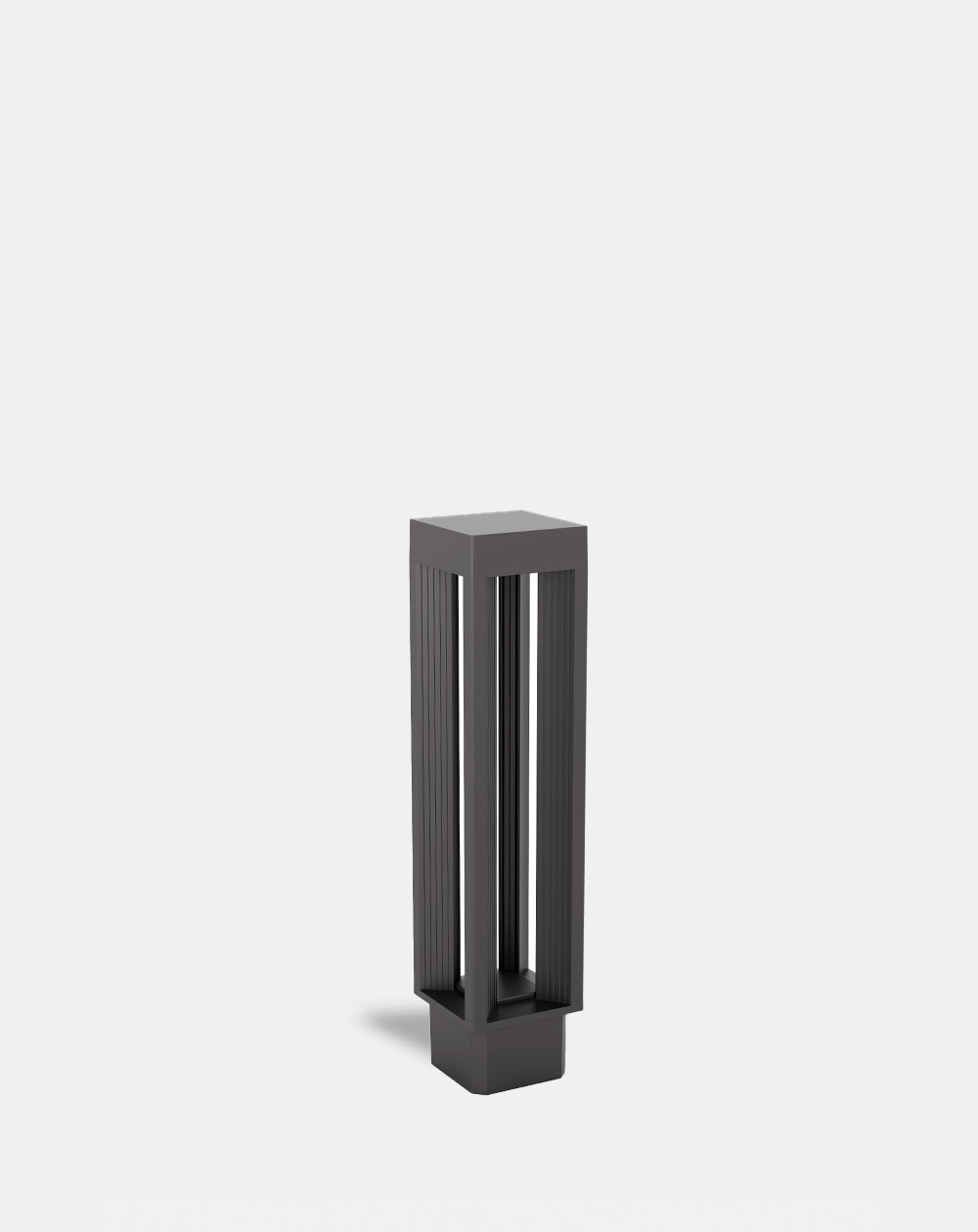

Orion D Column with top lighting
Column luminaire, for floor installation, with source light placed on top of fixture with a downwarding emission. This ensure an optimal light distribution on the ground and a better control of glaring effects. Floor fixing bracket with A2 steel clamps. Power supply with driver incorporated with fixed or dimmable output.
Installation Type
Ground installation
Body
Pole: Extruded aluminium alloy - Body/Base: Die-cast aluminium alloy
Screen
Sandblasted Glass
Seals
Closed-cell EPDM rubber
Screws
Stainless steel A2
Paint
Anti-corrosive UV stabilised polyester powder
Download BrochureOrion D_2022

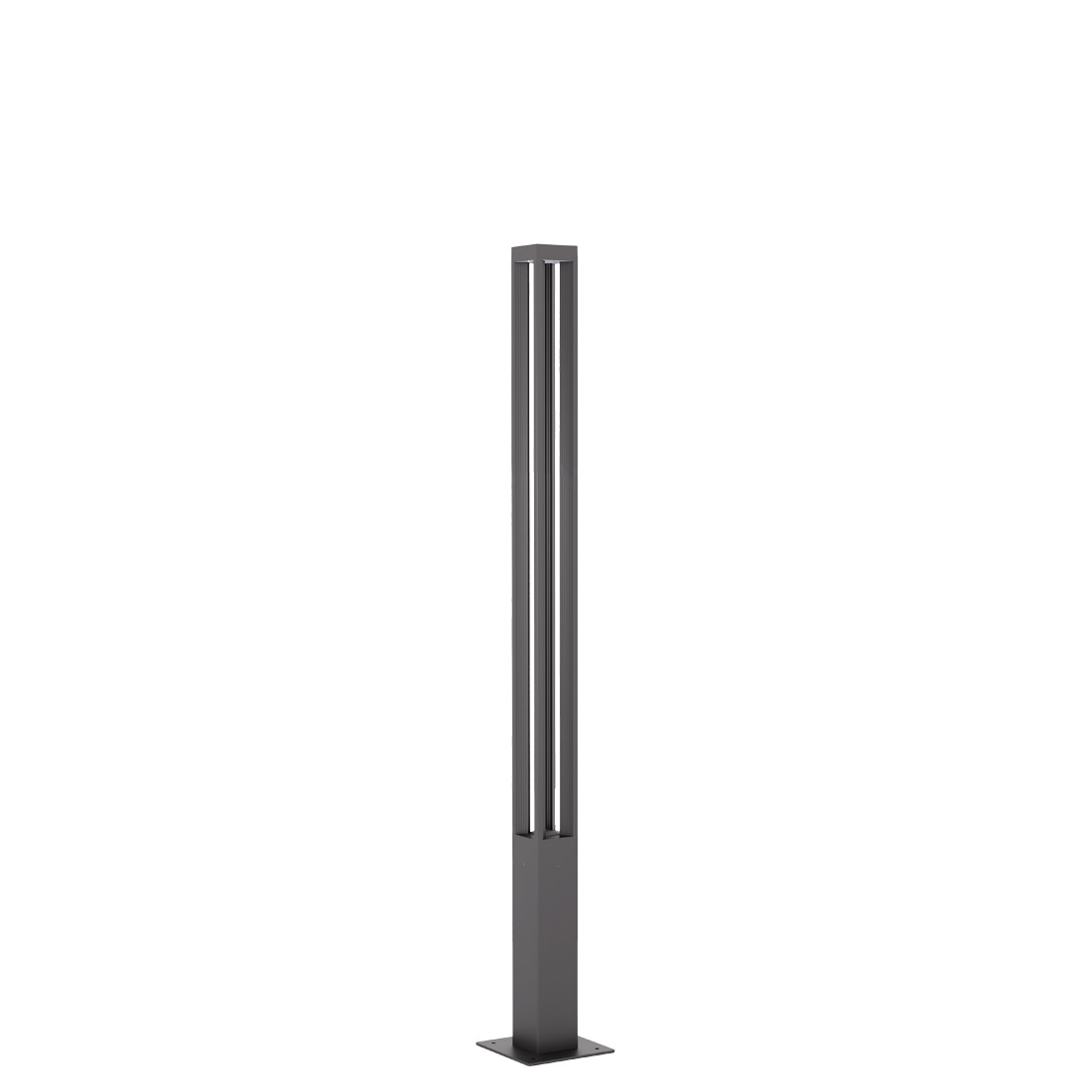

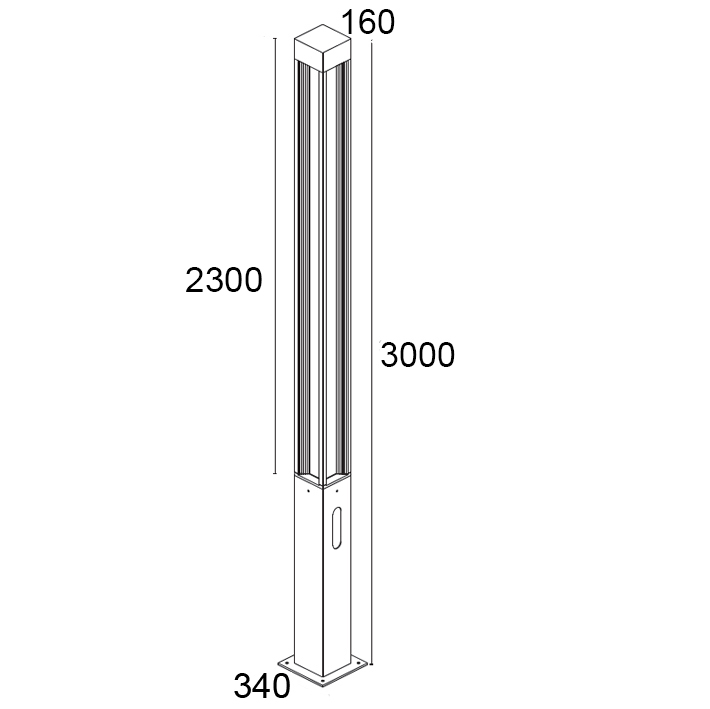

Pole 4 Ways H 3000
| Code | Beam | Class | IP | W | Power supply | Control | Fixture | CCT LED |
|---|---|---|---|---|---|---|---|---|
| 570F2/WC50EW |  Downward/Diffuse |
I | 65 | 35W | 220-240Vac 50/60Hz | ON/OFF | 2800 lm | 3000K |
| 570F2/NC50EW | Downward/Diffuse |
I | 65 | 35W | 220-240Vac 50/60Hz | ON/OFF | 2980 lm | 4000K |
Pole DALI 4 Ways H 3000
| Code | Beam | Class | IP | W | Power supply | Control | Fixture | CCT LED |
|---|---|---|---|---|---|---|---|---|
| 570F2/WD50EW | Downward/Diffuse |
I | 65 | 35W | 220-240Vac 50/60Hz | DALI-2 integrated | 2800 lm | 3000K |
| 570F2/ND50EW | Downward/Diffuse |
I | 65 | 35W | 220-240Vac 50/60Hz | DALI-2 integrated | 2980 lm | 4000K |

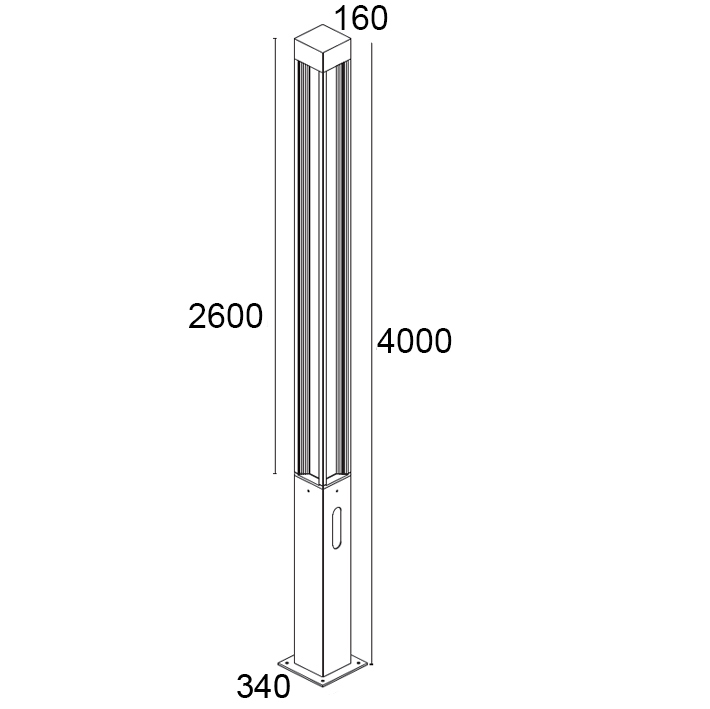

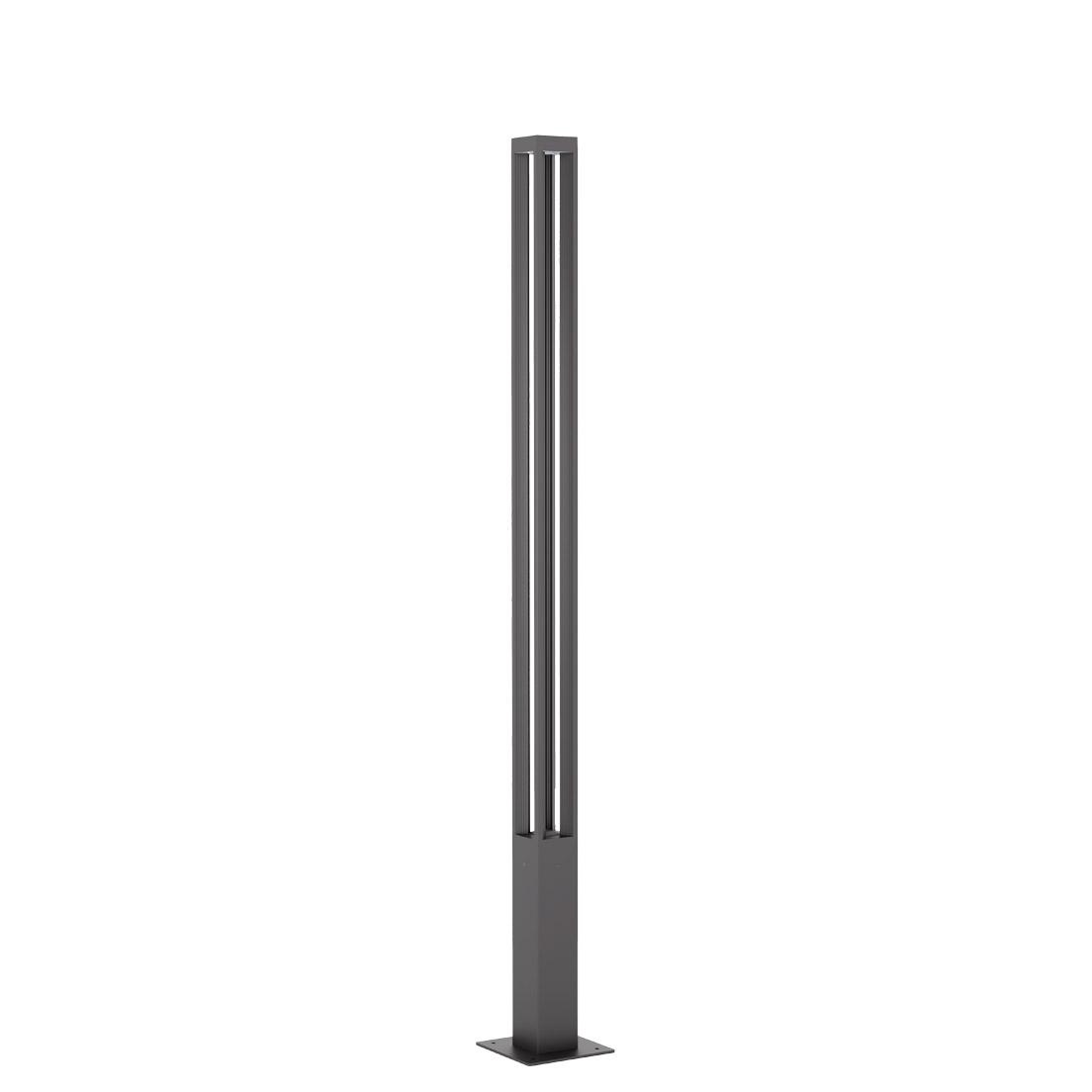

Pole 4 Ways H 4000
| Code | Beam | Class | IP | W | Power supply | Control | Fixture | CCT LED |
|---|---|---|---|---|---|---|---|---|
| 570F4/WC50EW | Downward/Diffuse |
I | 65 | 35W | 220-240Vac 50/60Hz | ON/OFF | 2800 lm | 3000K |
| 570F4/NC50EW | Downward/Diffuse |
I | 65 | 35W | 220-240Vac 50/60Hz | ON/OFF | 2980 lm | 4000K |
Pole DALI 4 Ways H 4000
| Code | Beam | Class | IP | W | Power supply | Control | Fixture | CCT LED |
|---|---|---|---|---|---|---|---|---|
| 570F4/WD50EW | Downward/Diffuse |
I | 65 | 35W | 220-240Vac 50/60Hz | DALI-2 integrated | 2800 lm | 3000K |
| 570F4/ND50EW | Downward/Diffuse |
I | 65 | 35W | 220-240Vac 50/60Hz | DALI-2 integrated | 2980 lm | 4000K |
