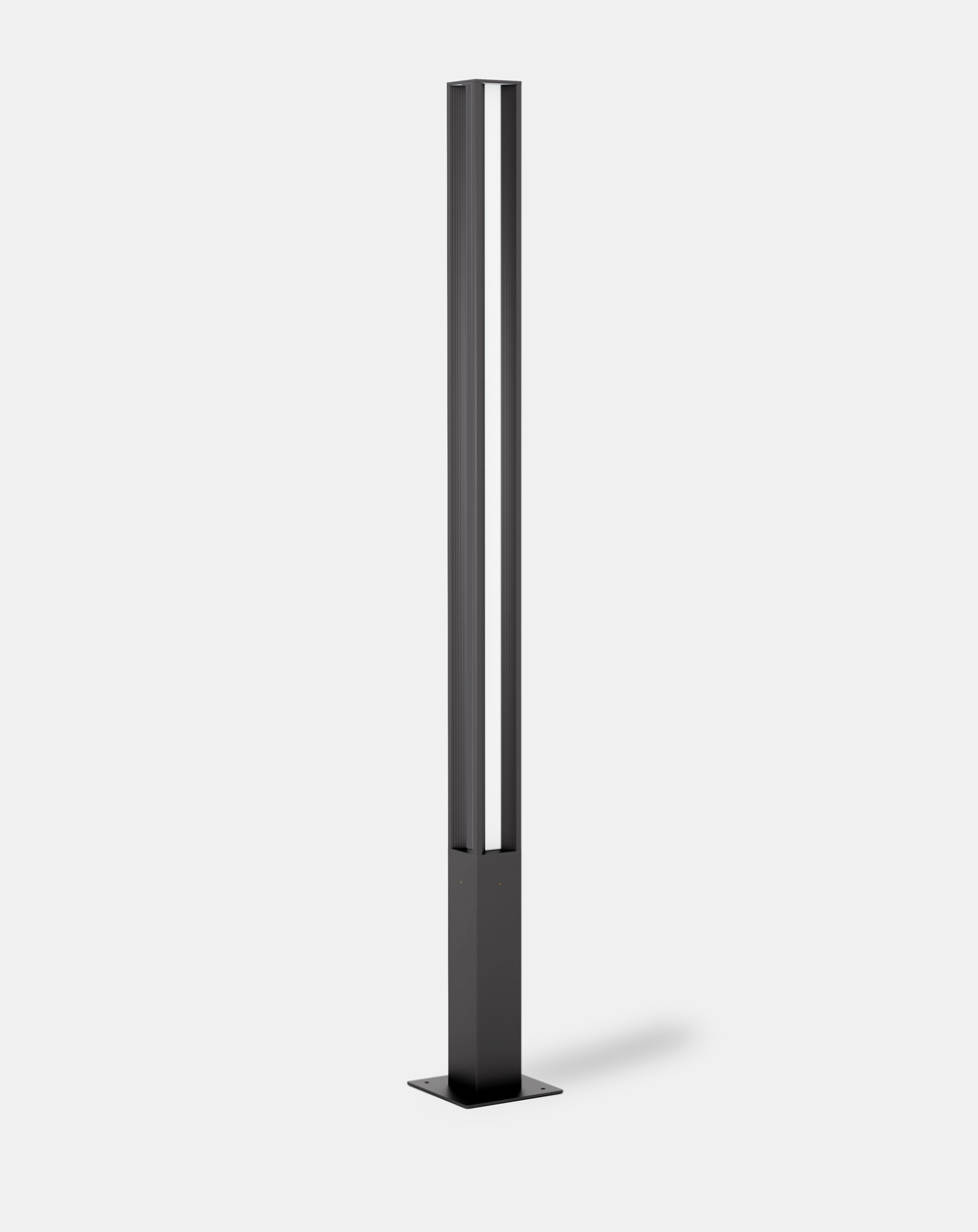

Orion TL Total Light Column luminaire
Column luminaire, for floor installation, with diffuser along its entire length for a scenographic uniformity of light. Optical compartment configurable for an emission from 1 to 4 light points in different heights. Floor fixing bracket with A2 steel clamps. Power supply with driver incorporated with fixed or Dali dimmable output on request with extra charge.
Installation Type
Ground installation
Body
Pole: Extruded aluminium alloy - Body/Base: Die-cast aluminium alloy
Screen
Opale Polycarbonate
Seals
Closed-cell EPDM rubber
Screws
Stainless steel A2
Paint
Anti-corrosive UV stabilised polyester powder
Control
DALI available on request
Download BrochureOrion TL_2022

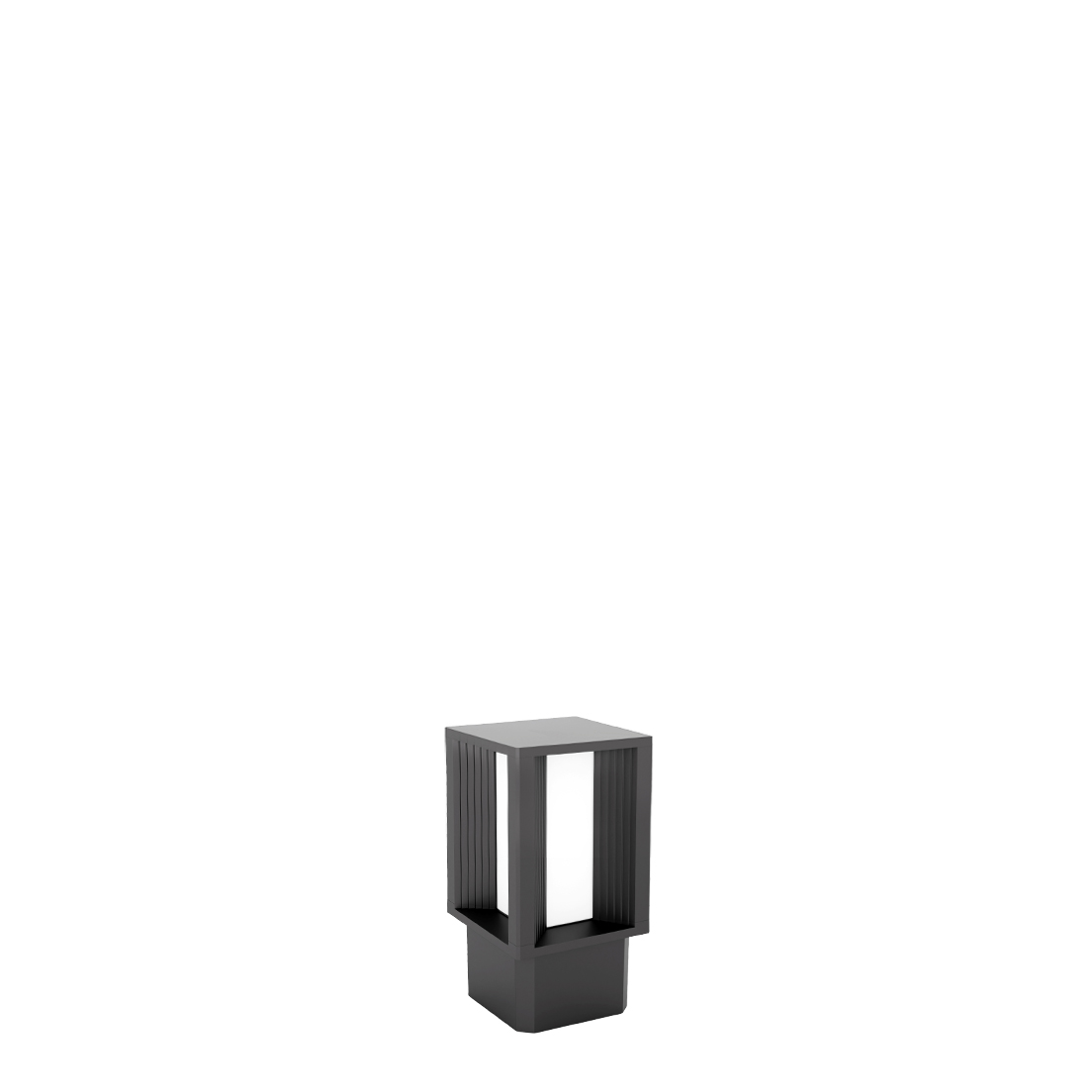

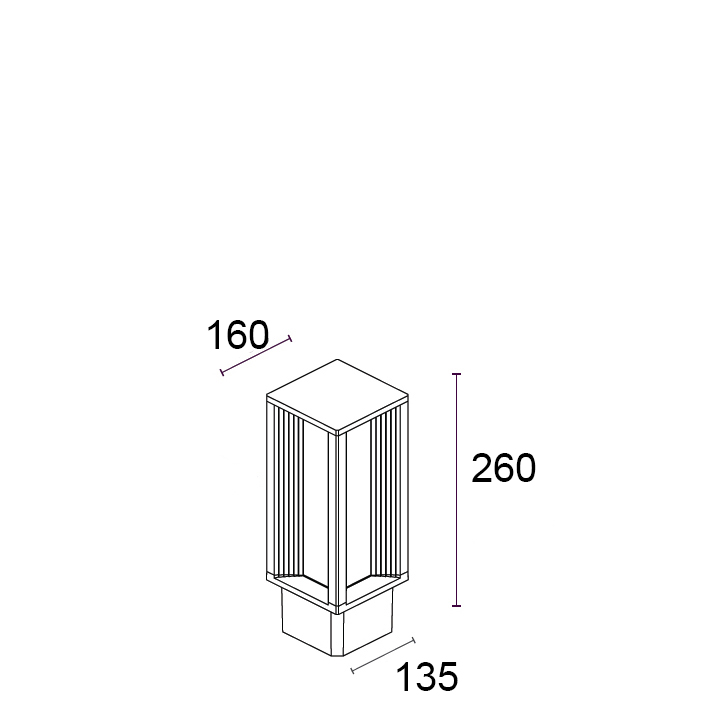

Bollard Total Light 4 Ways H. 260
| Code | Beam | Class | IP | W | Power supply | Control | Fixture | CCT LED |
|---|---|---|---|---|---|---|---|---|
| 474F0/HR50PO |  4 Ways/Diffuse >120 |
I | 65 | 14W | 220-240Vac 50/60Hz | ON/OFF | 779 lm | 2700K |
| 474F0/WR50PO | 4 Ways/Diffuse >120 |
I | 65 | 14W | 220-240Vac 50/60Hz | ON/OFF | 820 lm | 3000K |
| 474F0/NR50PO | 4 Ways/Diffuse >120 |
I | 65 | 14W | 220-240Vac 50/60Hz | ON/OFF | 860 lm | 4000K |
Bollard DALI Total Light 4 Ways H. 260
| Code | Beam | Class | IP | W | Power supply | Control | Fixture | CCT LED |
|---|---|---|---|---|---|---|---|---|
| 474F0/HD50PO | 4 Ways/Diffuse >120 |
I | 65 | 14W | 220-240Vac 50/60Hz | DALI-2 integrated | 779 lm | 2700K |
| 474F0/WD50PO | 4 Ways/Diffuse >120 |
I | 65 | 14W | 220-240Vac 50/60Hz | DALI-2 integrated | 820 lm | 3000K |
| 474F0/ND50PO | 4 Ways/Diffuse >120 |
I | 65 | 14W | 220-240Vac 50/60Hz | DALI-2 integrated | 860 lm | 4000K |

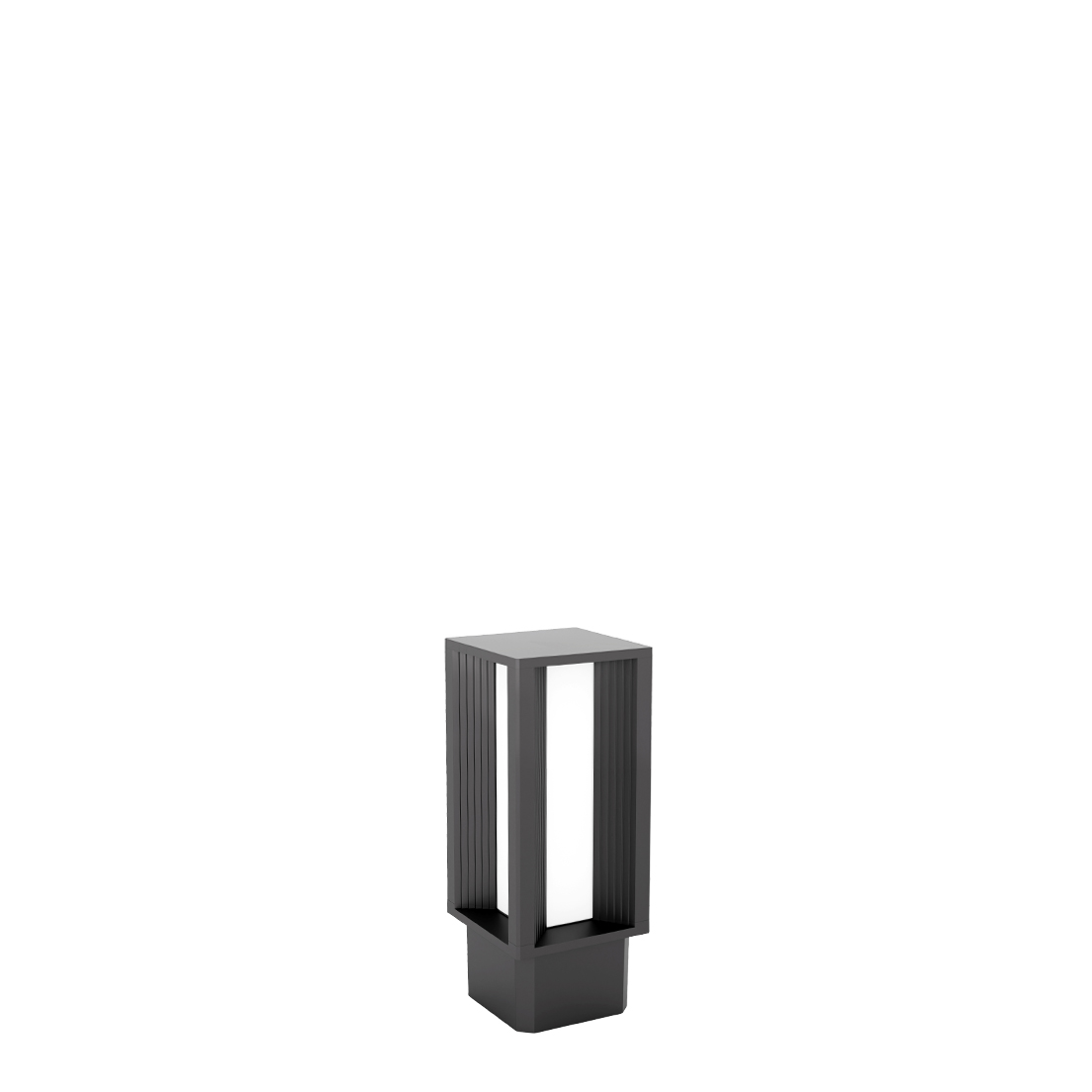

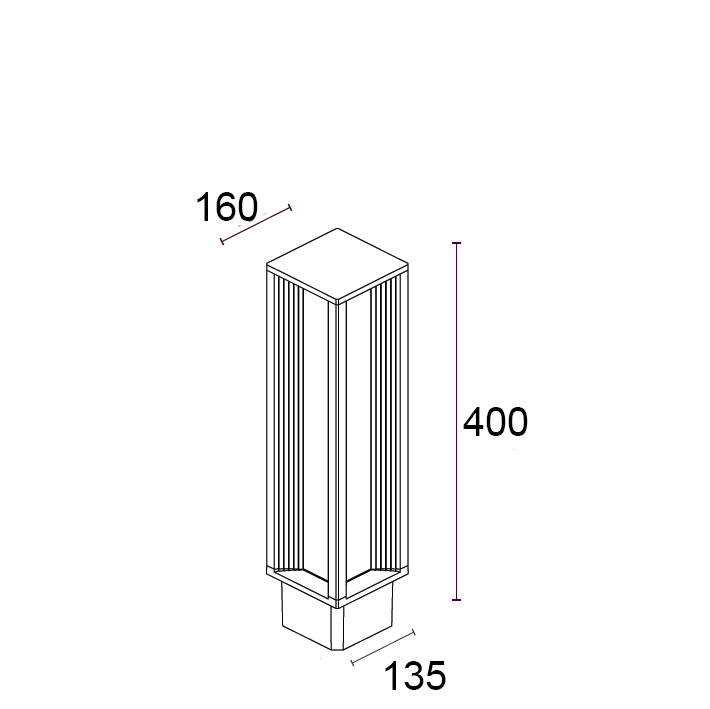

Bollard Total Light 4 Ways H. 400
| Code | Beam | Class | IP | W | Power supply | Control | Fixture | CCT LED |
|---|---|---|---|---|---|---|---|---|
| 474F1/HR50PO | 4 Ways/Diffuse >120 |
I | 65 | 25W | 220-240Vac 50/60Hz | ON/OFF | 1548 lm | 2700K |
| 474F1/WR50PO | 4 Ways/Diffuse >120 |
I | 65 | 25W | 220-240Vac 50/60Hz | ON/OFF | 1630 lm | 3000K |
| 474F1/NR50PO | 4 Ways/Diffuse >120 |
I | 65 | 25W | 220-240Vac 50/60Hz | ON/OFF | 1720 lm | 4000K |
Bollard DALI Total Light 4 Ways H. 400
| Code | Beam | Class | IP | W | Power supply | Control | Fixture | CCT LED |
|---|---|---|---|---|---|---|---|---|
| 474F1/HD50PO | 4 Ways/Diffuse >120 |
I | 65 | 25W | 220-240Vac 50/60Hz | DALI-2 integrated | 1548 lm | 2700K |
| 474F1/WD50PO | 4 Ways/Diffuse >120 |
I | 65 | 25W | 220-240Vac 50/60Hz | DALI-2 integrated | 1630 lm | 3000K |
| 474F1/ND50PO | 4 Ways/Diffuse >120 |
I | 65 | 25W | 220-240Vac 50/60Hz | DALI-2 integrated | 1720 lm | 4000K |

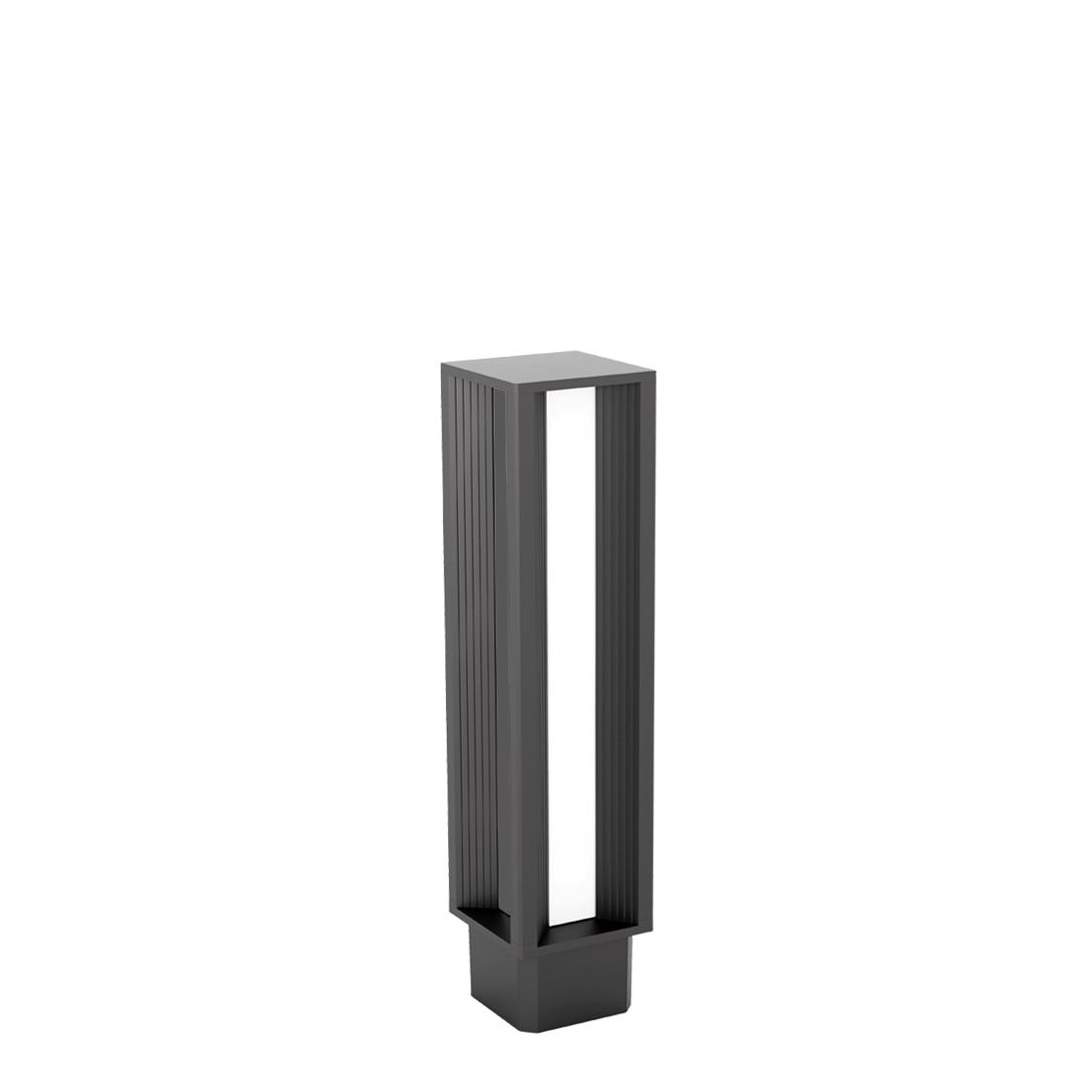

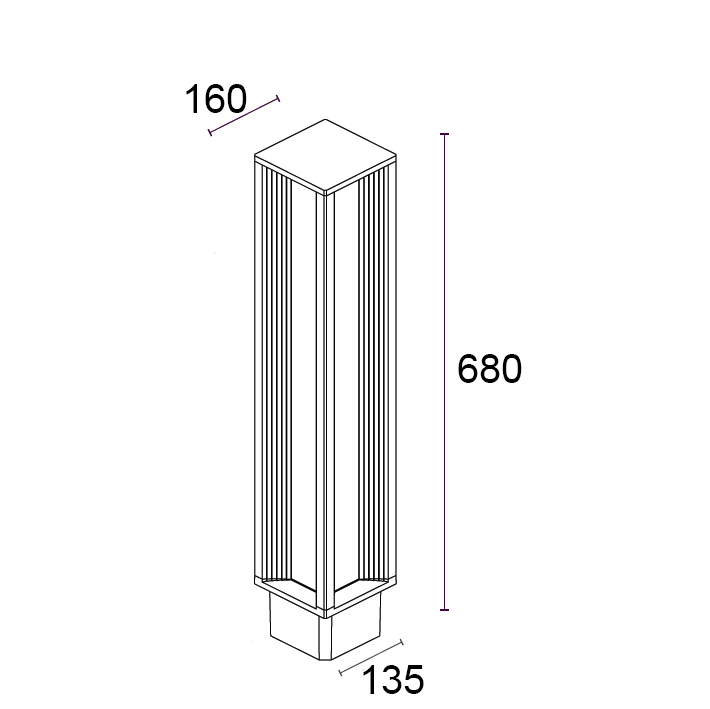

Bollard Total Light 1 Way H. 680
| Code | Beam | Class | IP | W | Power supply | Control | Fixture | CCT LED |
|---|---|---|---|---|---|---|---|---|
| 481F0/HR35PO |  1 Way/Diffuse >120 |
I | 65 | 10W | 220-240Vac 50/60Hz | ON/OFF | 555 lm | 2700K |
| 481F0/WR35PO | 1 Way/Diffuse >120 |
I | 65 | 10W | 220-240Vac 50/60Hz | ON/OFF | 585 lm | 3000K |
| 481F0/NR35PO | 1 Way/Diffuse >120 |
I | 65 | 10W | 220-240Vac 50/60Hz | ON/OFF | 612 lm | 4000K |
Bollard DALI Total Light 1 Way H. 680
| Code | Beam | Class | IP | W | Power supply | Control | Fixture | CCT LED |
|---|---|---|---|---|---|---|---|---|
| 481F0/HD35PO | 1 Way/Diffuse >120 |
I | 65 | 10W | 220-240Vac 50/60Hz | DALI-2 integrated | 555 lm | 2700K |
| 481F0/WD35PO | 1 Way/Diffuse >120 |
I | 65 | 10W | 220-240Vac 50/60Hz | DALI-2 integrated | 585 lm | 3000K |
| 481F0/ND35PO | 1 Way/Diffuse >120 |
I | 65 | 10W | 220-240Vac 50/60Hz | DALI-2 integrated | 612 lm | 4000K |
Bollard Total Light 2 Ways H. 680
| Code | Beam | Class | IP | W | Power supply | Control | Fixture | CCT LED |
|---|---|---|---|---|---|---|---|---|
| 482F0/HR35PO |  2 Ways/Diffuse >120 |
I | 65 | 18W | 220-240Vac 50/60Hz | ON/OFF | 1111 lm | 2700K |
| 482F0/WR35PO | 2 Ways/Diffuse >120 |
I | 65 | 18W | 220-240Vac 50/60Hz | ON/OFF | 1170 lm | 3000K |
| 482F0/NR35PO | 2 Ways/Diffuse >120 |
I | 65 | 18W | 220-240Vac 50/60Hz | ON/OFF | 1224 lm | 4000K |
Bollard DALI Total Light 2 Ways H. 680
| Code | Beam | Class | IP | W | Power supply | Control | Fixture | CCT LED |
|---|---|---|---|---|---|---|---|---|
| 482F0/HD35PO | 2 Ways/Diffuse >120 |
I | 65 | 18W | 220-240Vac 50/60Hz | DALI-2 integrated | 1111 lm | 2700K |
| 482F0/WD35PO | 2 Ways/Diffuse >120 |
I | 65 | 18W | 220-240Vac 50/60Hz | DALI-2 integrated | 1170 lm | 3000K |
| 482F0/ND35PO | 2 Ways/Diffuse >120 |
I | 65 | 18W | 220-240Vac 50/60Hz | DALI-2 integrated | 1224 lm | 4000K |

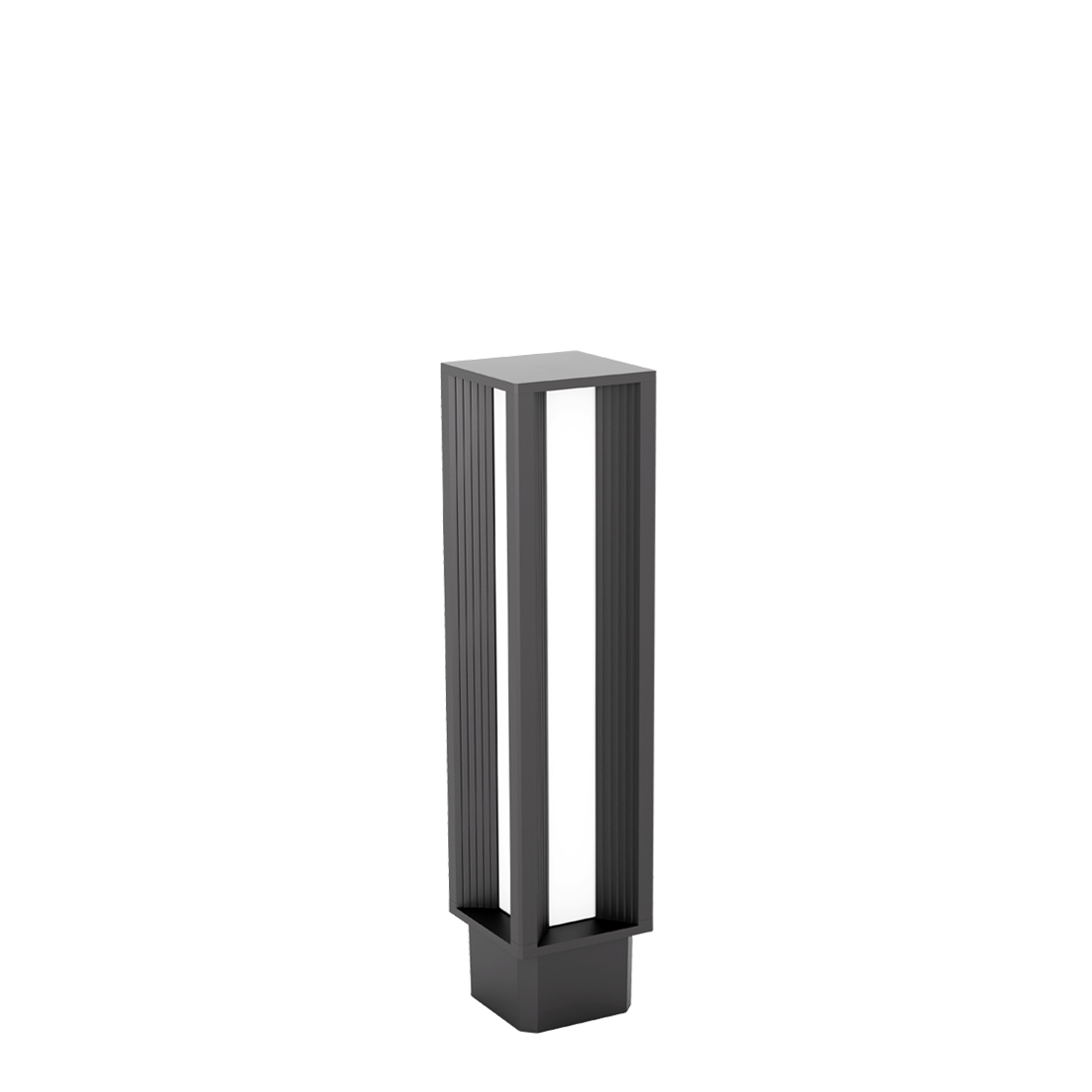

Bollard Total Light 4 Ways H. 680
| Code | Beam | Class | IP | W | Power supply | Control | Fixture | CCT LED |
|---|---|---|---|---|---|---|---|---|
| 484F0/HR35PO | 4 Ways/Diffuse >120 |
I | 65 | 36W | 220-240Vac 50/60Hz | ON/OFF | 2223 lm | 2700K |
| 484F0/WR35PO | 4 Ways/Diffuse >120 |
I | 65 | 36W | 220-240Vac 50/60Hz | ON/OFF | 2340 lm | 3000K |
| 484F0/NR35PO | 4 Ways/Diffuse >120 |
I | 65 | 36W | 220-240Vac 50/60Hz | ON/OFF | 2450 lm | 4000K |
Bollard DALI Total Light 4 Ways H. 680
| Code | Beam | Class | IP | W | Power supply | Control | Fixture | CCT LED |
|---|---|---|---|---|---|---|---|---|
| 484F0/HD35PO | 4 Ways/Diffuse >120 |
I | 65 | 36W | 220-240Vac 50/60Hz | DALI-2 integrated | 2223 lm | 2700K |
| 484F0/WD35PO | 4 Ways/Diffuse >120 |
I | 65 | 36W | 220-240Vac 50/60Hz | DALI-2 integrated | 2340 lm | 3000K |
| 484F0/ND35PO | 4 Ways/Diffuse >120 |
I | 65 | 36W | 220-240Vac 50/60Hz | DALI-2 integrated | 2450 lm | 4000K |

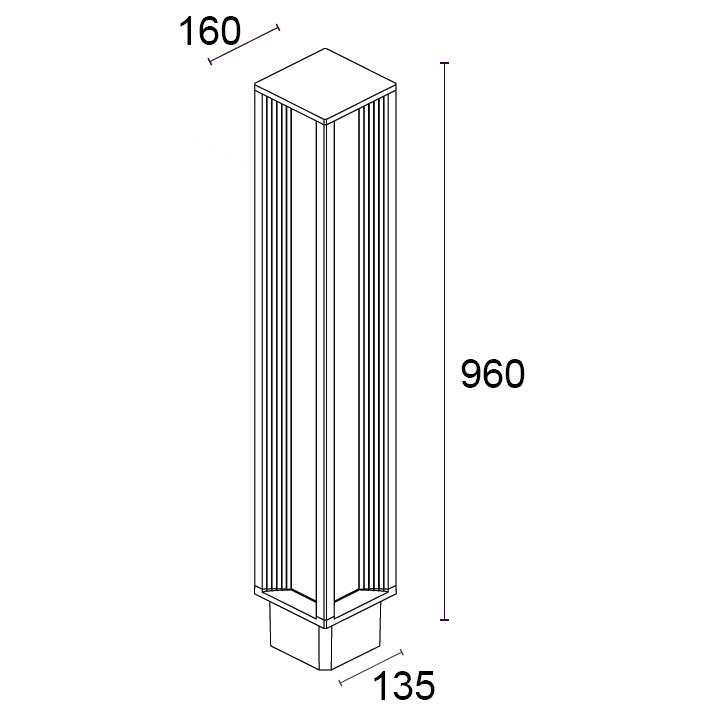

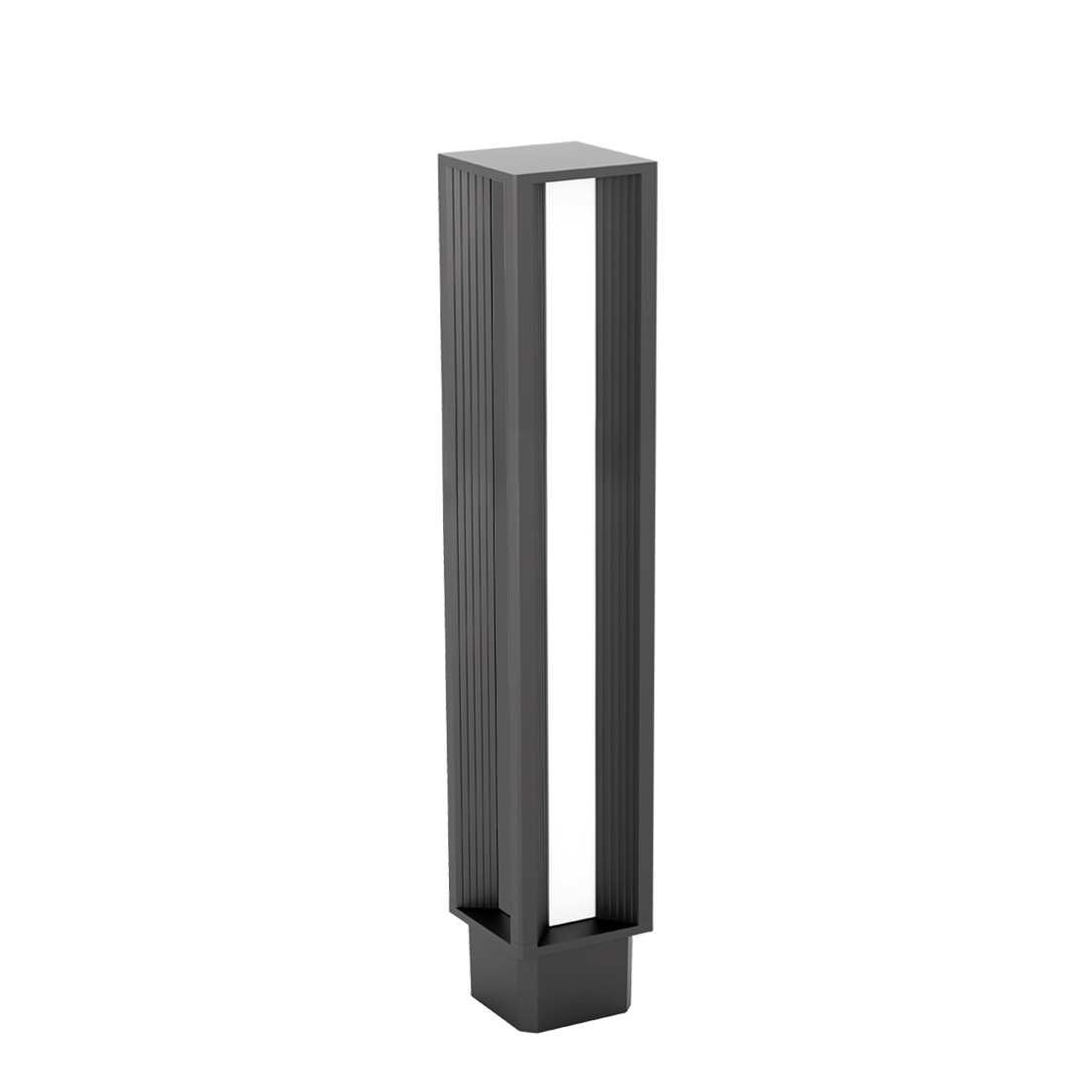

Bollard Total Light 1 Way H. 960
| Code | Beam | Class | IP | W | Power supply | Control | Fixture | CCT LED |
|---|---|---|---|---|---|---|---|---|
| 481F1/HR35PO | 1 Way/Diffuse >120 |
I | 65 | 15W | 220-240Vac 50/60Hz | ON/OFF | 835 lm | 2700K |
| 481F1/WR35PO | 1 Way/Diffuse >120 |
I | 65 | 15W | 220-240Vac 50/60Hz | ON/OFF | 879 lm | 3000K |
| 481F1/NR35PO | 1 Way/Diffuse >120 |
I | 65 | 15W | 220-240Vac 50/60Hz | ON/OFF | 925 lm | 4000K |
Bollard DALI Total Light 1 Way H. 960
| Code | Beam | Class | IP | W | Power supply | Control | Fixture | CCT LED |
|---|---|---|---|---|---|---|---|---|
| 481F1/HD35PO | 1 Way/Diffuse >120 |
I | 65 | 15W | 220-240Vac 50/60Hz | DALI-2 integrated | 835 lm | 2700K |
| 481F1/WD35PO | 1 Way/Diffuse >120 |
I | 65 | 15W | 220-240Vac 50/60Hz | DALI-2 integrated | 879 lm | 3000K |
| 481F1/ND35PO | 1 Way/Diffuse >120 |
I | 65 | 15W | 220-240Vac 50/60Hz | DALI-2 integrated | 925 lm | 4000K |
Bollard Total Light 2 Ways H. 960
| Code | Beam | Class | IP | W | Power supply | Control | Fixture | CCT LED |
|---|---|---|---|---|---|---|---|---|
| 482F1/HR35PO | 2 Ways/Diffuse >120 |
I | 65 | 28W | 220-240Vac 50/60Hz | ON/OFF | 1672 lm | 2700K |
| 482F1/WR35PO | 2 Ways/Diffuse >120 |
I | 65 | 28W | 220-240Vac 50/60Hz | ON/OFF | 1760 lm | 3000K |
| 482F1/NR35PO | 2 Ways/Diffuse >120 |
I | 65 | 28W | 220-240Vac 50/60Hz | ON/OFF | 1850 lm | 4000K |
Bollard DALI Total Light 2 Ways H. 960
| Code | Beam | Class | IP | W | Power supply | Control | Fixture | CCT LED |
|---|---|---|---|---|---|---|---|---|
| 482F1/HD35PO | 2 Ways/Diffuse >120 |
I | 65 | 28W | 220-240Vac 50/60Hz | DALI-2 integrated | 1672 lm | 2700K |
| 482F1/WD35PO | 2 Ways/Diffuse >120 |
I | 65 | 28W | 220-240Vac 50/60Hz | DALI-2 integrated | 1760 lm | 3000K |
| 482F1/ND35PO | 2 Ways/Diffuse >120 |
I | 65 | 28W | 220-240Vac 50/60Hz | DALI-2 integrated | 1850 lm | 4000K |

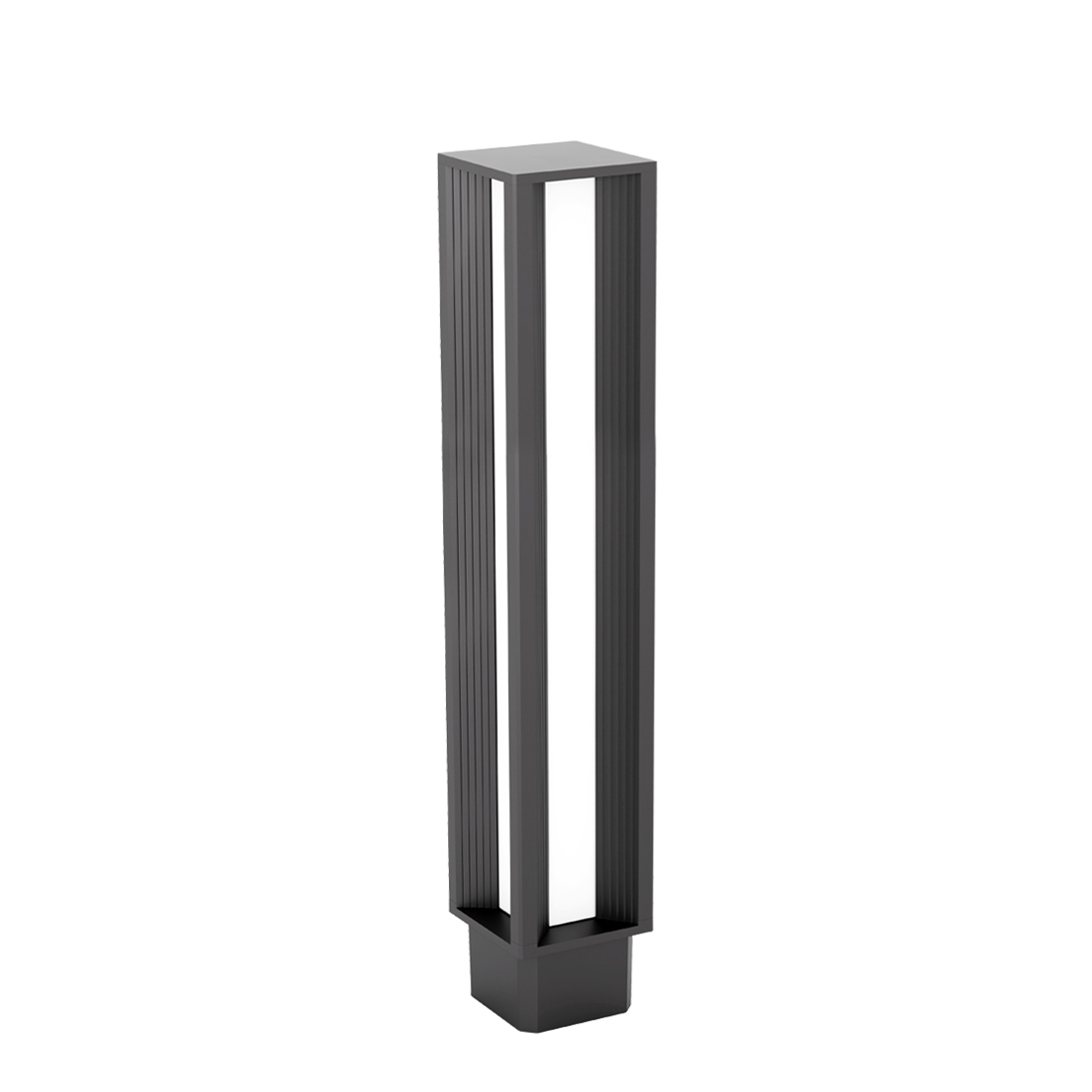

Bollard Total Light 4 Ways H. 960
| Code | Beam | Class | IP | W | Power supply | Control | Fixture | CCT LED |
|---|---|---|---|---|---|---|---|---|
| 484F1/HR35PO | 4 Ways/Diffuse >120 |
I | 65 | 50W | 220-240Vac 50/60Hz | ON/OFF | 3339 lm | 2700K |
| 484F1/WR35PO | 4 Ways/Diffuse >120 |
I | 65 | 50W | 220-240Vac 50/60Hz | ON/OFF | 3515 lm | 3000K |
| 484F1/NR35PO | 4 Ways/Diffuse >120 |
I | 65 | 50W | 220-240Vac 50/60Hz | ON/OFF | 3700 lm | 4000K |
Bollard DALI Total Light 4 Ways H. 960
| Code | Beam | Class | IP | W | Power supply | Control | Fixture | CCT LED |
|---|---|---|---|---|---|---|---|---|
| 484F1/HD35PO | 4 Ways/Diffuse >120 |
I | 65 | 50W | 220-240Vac 50/60Hz | DALI-2 integrated | 3339 lm | 2700K |
| 484F1/WD35PO | 4 Ways/Diffuse >120 |
I | 65 | 50W | 220-240Vac 50/60Hz | DALI-2 integrated | 3515 lm | 3000K |
| 484F1/ND35PO | 4 Ways/Diffuse >120 |
I | 65 | 50W | 220-240Vac 50/60Hz | DALI-2 integrated | 3700 lm | 4000K |
