Matrix Recessed Einbauleuchten für lineare Beleuchtung
Lineare Bodeneinbauleuchte, begehbar bis zu 500 kg. Sie ist mit Sekundäroptiken für unterschiedliche Lichtverteilungen für die Streifbeleuchtung von Fassaden und architektonischen Elementen ausgestattet, oder mit geätztem Glas für eine diffuse Verteilung in Kombination mit Blendschutz, wodurch sie sich für Fußgängerwege eignet. Auch als RGBW erhältlich.
Art der Installation
Bodeneinbau
Gehäuse
Stranggepresstes Aluminium
Box
Edelstahlblech AISI430F
Rahmen
Gebürsteter Stahl AISI316
Schirm
8 mm starkes, extraklares, gehärtetes Glas mit Siebdruck
Dichtungen
Geschlossenzelliger EPDM-Kautschuk
Schrauben
Edelstahl A2

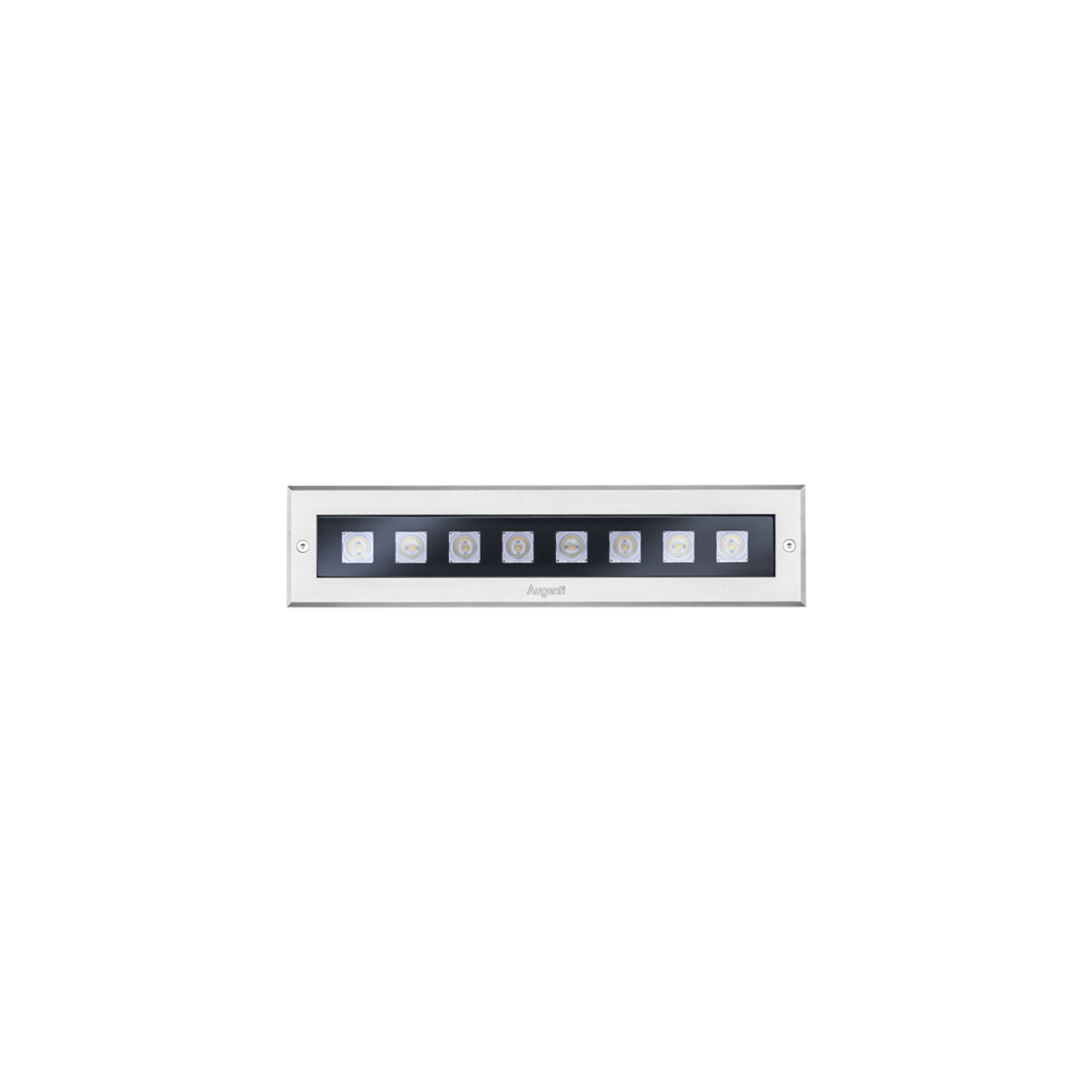

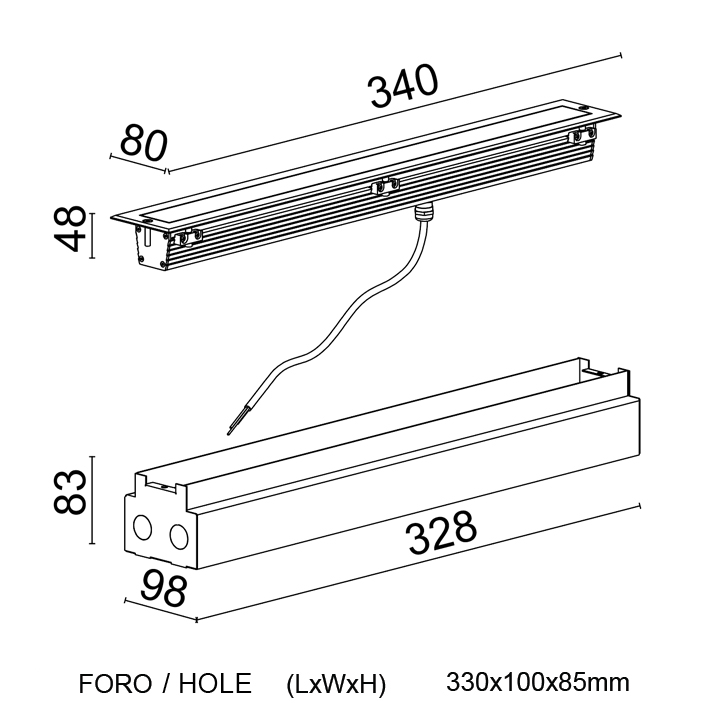

Einbau-Wallwasher mit Linsen L. 340
| Code | Lichtbündel | Klasse | IP | W | Netzteil | Dimmung | Leuchte | CCT LED |
|---|---|---|---|---|---|---|---|---|
| 2800R/HP50.NB99 |  Spot/12° |
I | 67 | 14W | 220-240Vac 50/60Hz | ON/OFF | 1159 lm | 2700K |
| 2800R/HP50.MB99 |  Mittel/28° Uplight |
I | 67 | 14W | 220-240Vac 50/60Hz | ON/OFF | 1159 lm | 2700K |
| 2800R/HP50.OB99 |  Ovales 42°x12° |
I | 67 | 14W | 220-240Vac 50/60Hz | ON/OFF | 1159 lm | 2700K |
| 2800R/HP50.WB99 |  breit/50° |
I | 67 | 14W | 220-240Vac 50/60Hz | ON/OFF | 1159 lm | 2700K |
| 2800R/HP50.AB99 |  Asymmetrisch |
I | 67 | 14W | 220-240Vac 50/60Hz | ON/OFF | 1159 lm | 2700K |
| 2800R/WP50.NB99 | Spot/12° |
I | 67 | 14W | 220-240Vac 50/60Hz | ON/OFF | 1220 lm | 3000K |
| 2800R/WP50.MB99 | Mittel/28° Uplight |
I | 67 | 14W | 220-240Vac 50/60Hz | ON/OFF | 1220 lm | 3000K |
| 2800R/WP50.OB99 | Ovales 42°x12° |
I | 67 | 14W | 220-240Vac 50/60Hz | ON/OFF | 1220 lm | 3000K |
| 2800R/WP50.WB99 | breit/50° |
I | 67 | 14W | 220-240Vac 50/60Hz | ON/OFF | 1220 lm | 3000K |
| 2800R/WP50.AB99 | Asymmetrisch |
I | 67 | 14W | 220-240Vac 50/60Hz | ON/OFF | 1220 lm | 3000K |
| 2800R/NP50.NB99 | Spot/12° |
I | 67 | 14W | 220-240Vac 50/60Hz | ON/OFF | 1281 lm | 4000K |
| 2800R/NP50.MB99 | Mittel/28° Uplight |
I | 67 | 14W | 220-240Vac 50/60Hz | ON/OFF | 1281 lm | 4000K |
| 2800R/NP50.OB99 | Ovales 42°x12° |
I | 67 | 14W | 220-240Vac 50/60Hz | ON/OFF | 1281 lm | 4000K |
| 2800R/NP50.WB99 | breit/50° |
I | 67 | 14W | 220-240Vac 50/60Hz | ON/OFF | 1281 lm | 4000K |
| 2800R/NP50.AB99 | Asymmetrisch |
I | 67 | 14W | 220-240Vac 50/60Hz | ON/OFF | 1281 lm | 4000K |
Einbau-Wallwasher DALI mit Linsen L. 340
| Code | Lichtbündel | Klasse | IP | W | Netzteil | Dimmung | Leuchte | CCT LED |
|---|---|---|---|---|---|---|---|---|
| 2800R/HD50.NB99 | Spot/12° |
I | 67 | 14W | 220-240Vac 50/60Hz | DALI-2 integriert | 1159 lm | 2700K |
| 2800R/HD50.MB99 | Mittel/28° Uplight |
I | 67 | 14W | 220-240Vac 50/60Hz | DALI-2 integriert | 1159 lm | 2700K |
| 2800R/HD50.OB99 | Ovales 42°x12° |
I | 67 | 14W | 220-240Vac 50/60Hz | DALI-2 integriert | 1159 lm | 2700K |
| 2800R/HD50.WB99 | breit/50° |
I | 67 | 14W | 220-240Vac 50/60Hz | DALI-2 integriert | 1159 lm | 2700K |
| 2800R/HD50.AB99 | Asymmetrisch |
I | 67 | 14W | 220-240Vac 50/60Hz | DALI-2 integriert | 1159 lm | 2700K |
| 2800R/WD50.NB99 | Spot/12° |
I | 67 | 14W | 220-240Vac 50/60Hz | DALI-2 integriert | 1220 lm | 3000K |
| 2800R/WD50.MB99 | Mittel/28° Uplight |
I | 67 | 14W | 220-240Vac 50/60Hz | DALI-2 integriert | 1220 lm | 3000K |
| 2800R/WD50.OB99 | Ovales 42°x12° |
I | 67 | 14W | 220-240Vac 50/60Hz | DALI-2 integriert | 1220 lm | 3000K |
| 2800R/WD50.WB99 | breit/50° |
I | 67 | 14W | 220-240Vac 50/60Hz | DALI-2 integriert | 1220 lm | 3000K |
| 2800R/WD50.AB99 | Asymmetrisch |
I | 67 | 14W | 220-240Vac 50/60Hz | DALI-2 integriert | 1220 lm | 3000K |
| 2800R/ND50.NB99 | Spot/12° |
I | 67 | 14W | 220-240Vac 50/60Hz | DALI-2 integriert | 1281 lm | 4000K |
| 2800R/ND50.MB99 | Mittel/28° Uplight |
I | 67 | 14W | 220-240Vac 50/60Hz | DALI-2 integriert | 1281 lm | 4000K |
| 2800R/ND50.OB99 | Ovales 42°x12° |
I | 67 | 14W | 220-240Vac 50/60Hz | DALI-2 integriert | 1281 lm | 4000K |
| 2800R/ND50.WB99 | breit/50° |
I | 67 | 14W | 220-240Vac 50/60Hz | DALI-2 integriert | 1281 lm | 4000K |
| 2800R/ND50.AB99 | Asymmetrisch |
I | 67 | 14W | 220-240Vac 50/60Hz | DALI-2 integriert | 1281 lm | 4000K |

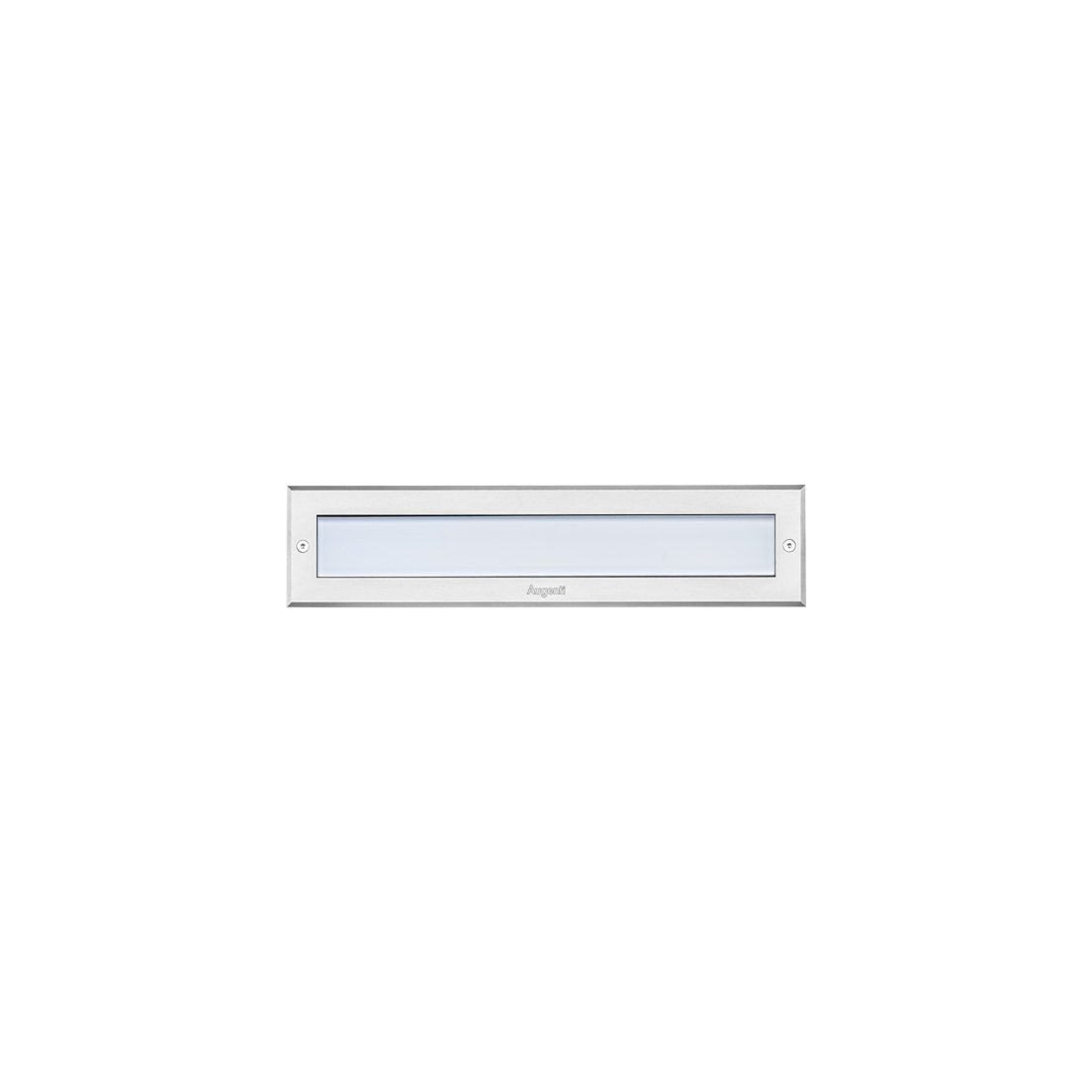

Einbau-Wallwasher Diffuse Lichtgabe L. 340
| Code | Lichtbündel | Klasse | IP | W | Netzteil | Dimmung | Leuchte | CCT LED |
|---|---|---|---|---|---|---|---|---|
| 2800R/HR50VS.99 |  Diffus |
I | 67 | 8W | 220-240Vac 50/60Hz | ON/OFF | 322 lm | 2700K |
| 2800R/WR50VS.99 | Diffus |
I | 67 | 8W | 220-240Vac 50/60Hz | ON/OFF | 339 lm | 3000K |
| 2800R/NR50VS.99 | Diffus |
I | 67 | 8W | 220-240Vac 50/60Hz | ON/OFF | 357 lm | 4000K |
Einbau-Wallwasher DALI Diffuse Lichtgabe L. 340
| Code | Lichtbündel | Klasse | IP | W | Netzteil | Dimmung | Leuchte | CCT LED |
|---|---|---|---|---|---|---|---|---|
| 2800R/HD50VS.99 | Diffus |
I | 67 | 8W | 220-240Vac 50/60Hz | DALI-2 integriert | 322 lm | 2700K |
| 2800R/WD50VS.99 | Diffus |
I | 67 | 8W | 220-240Vac 50/60Hz | DALI-2 integriert | 339 lm | 3000K |
| 2800R/ND50VS.99 | Diffus |
I | 67 | 8W | 220-240Vac 50/60Hz | DALI-2 integriert | 357 lm | 4000K |

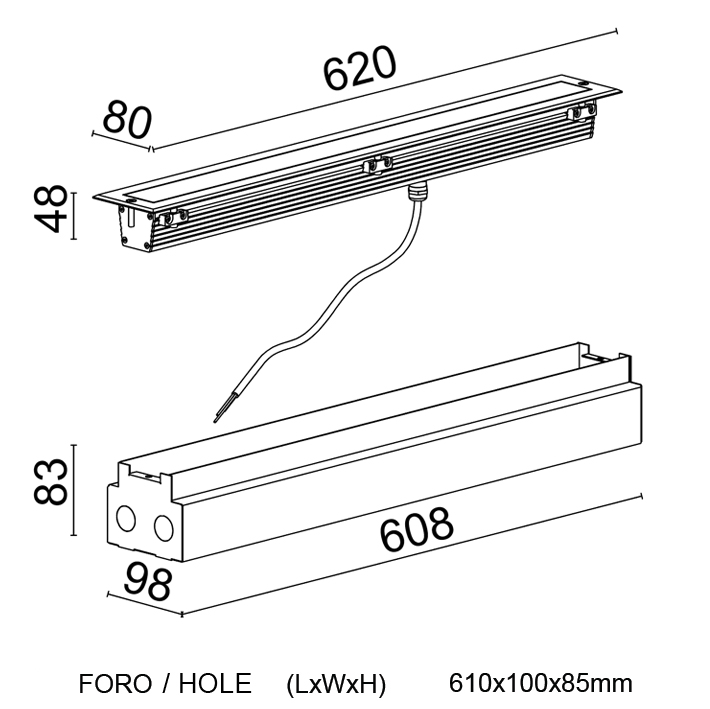

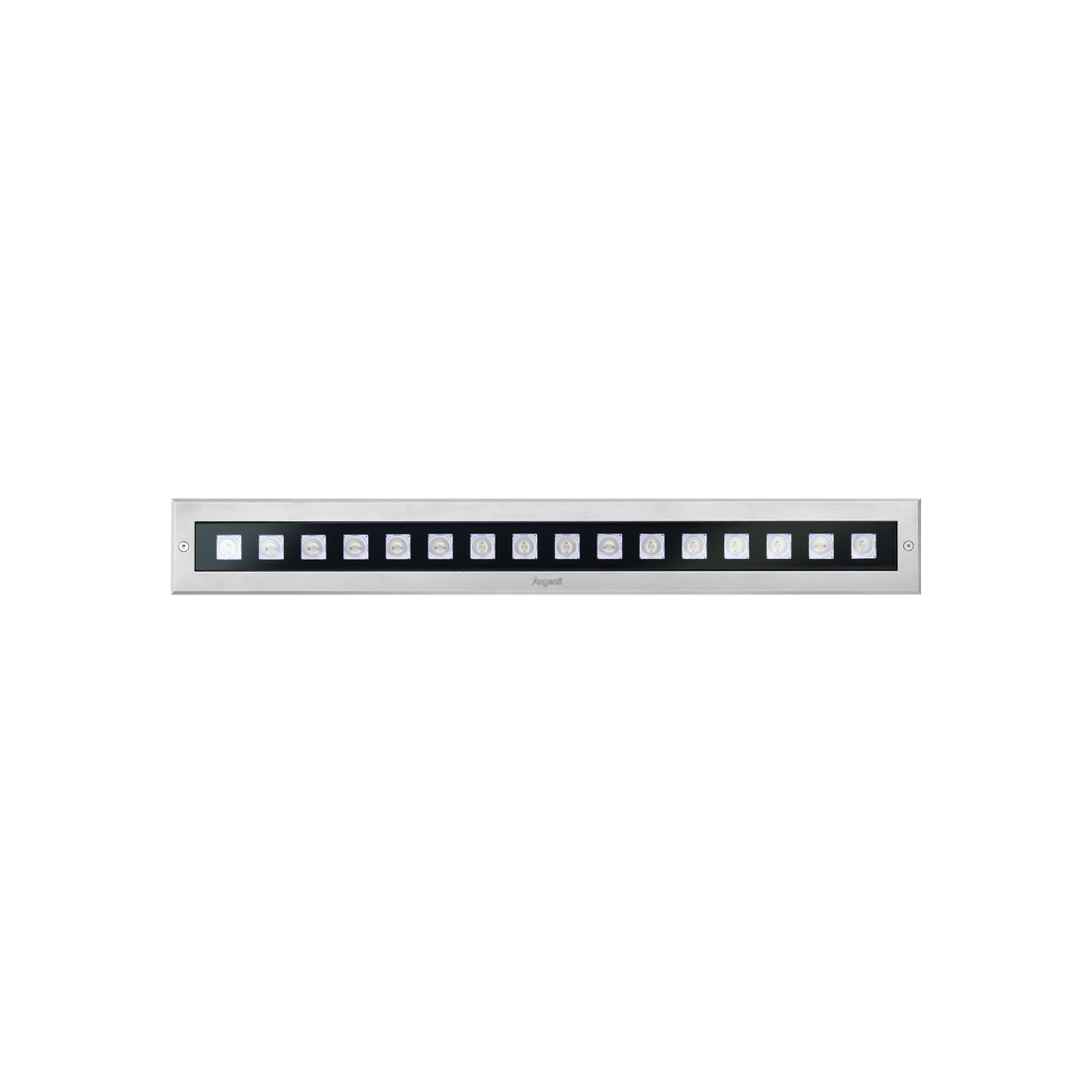

Einbau-Wallwasher mit Linsen L. 620
| Code | Lichtbündel | Klasse | IP | W | Netzteil | Dimmung | Leuchte | CCT LED |
|---|---|---|---|---|---|---|---|---|
| 2801R/HP50.NB99 | Spot/12° |
I | 67 | 26W | 220-240Vac 50/60Hz | ON/OFF | 2318 lm | 2700K |
| 2801R/HP50.MB99 | Mittel/28° Uplight |
I | 67 | 26W | 220-240Vac 50/60Hz | ON/OFF | 2318 lm | 2700K |
| 2801R/HP50.OB99 | Ovales 42°x12° |
I | 67 | 26W | 220-240Vac 50/60Hz | ON/OFF | 2318 lm | 2700K |
| 2801R/HP50.WB99 | breit/50° |
I | 67 | 26W | 220-240Vac 50/60Hz | ON/OFF | 2318 lm | 2700K |
| 2801R/HP50.AB99 | Asymmetrisch |
I | 67 | 26W | 220-240Vac 50/60Hz | ON/OFF | 2318 lm | 2700K |
| 2801R/WP50.NB99 | Spot/12° |
I | 67 | 26W | 220-240Vac 50/60Hz | ON/OFF | 2440 lm | 3000K |
| 2801R/WP50.MB99 | Mittel/28° Uplight |
I | 67 | 26W | 220-240Vac 50/60Hz | ON/OFF | 2440 lm | 3000K |
| 2801R/WP50.OB99 | Ovales 42°x12° |
I | 67 | 26W | 220-240Vac 50/60Hz | ON/OFF | 2440 lm | 3000K |
| 2801R/WP50.WB99 | Breit/50° |
I | 67 | 26W | 220-240Vac 50/60Hz | ON/OFF | 2440 lm | 3000K |
| 2801R/WP50.AB99 | Asymmetrisch |
I | 67 | 26W | 220-240Vac 50/60Hz | ON/OFF | 2440 lm | 3000K |
| 2801R/NP50.NB99 | Spot/12° |
I | 67 | 26W | 220-240Vac 50/60Hz | ON/OFF | 2562 lm | 4000K |
| 2801R/NP50.MB99 | Mittel/28° Uplight |
I | 67 | 26W | 220-240Vac 50/60Hz | ON/OFF | 2562 lm | 4000K |
| 2801R/NP50.OB99 | Ovales 42°x12° |
I | 67 | 26W | 220-240Vac 50/60Hz | ON/OFF | 2562 lm | 4000K |
| 2801R/NP50.WB99 | Breit/50° |
I | 67 | 26W | 220-240Vac 50/60Hz | ON/OFF | 2562 lm | 4000K |
| 2801R/NP50.AB99 | Asymmetrisch |
I | 67 | 26W | 220-240Vac 50/60Hz | ON/OFF | 2562 lm | 4000K |
Einbau-Wallwasher DALI mit Linsen L. 620
| Code | Lichtbündel | Klasse | IP | W | Netzteil | Dimmung | Leuchte | CCT LED |
|---|---|---|---|---|---|---|---|---|
| 2801R/HD50.NB99 | Spot/12° |
I | 67 | 26W | 220-240Vac 50/60Hz | DALI-2 integriert | 2318 lm | 2700K |
| 2801R/HD50.MB99 | Mittel/28° Uplight |
I | 67 | 26W | 220-240Vac 50/60Hz | DALI-2 integriert | 2318 lm | 2700K |
| 2801R/HD50.OB99 | Ovales 42°x12° |
I | 67 | 26W | 220-240Vac 50/60Hz | DALI-2 integriert | 2318 lm | 2700K |
| 2801R/HD50.WB99 | breit/50° |
I | 67 | 26W | 220-240Vac 50/60Hz | DALI-2 integriert | 2318 lm | 2700K |
| 2801R/HD50.AB99 | Asymmetrisch |
I | 67 | 26W | 220-240Vac 50/60Hz | DALI-2 integriert | 2318 lm | 2700K |
| 2801R/WD50.NB99 | Spot/12° |
I | 67 | 26W | 220-240Vac 50/60Hz | DALI-2 integriert | 2440 lm | 3000K |
| 2801R/WD50.MB99 | Mittel/28° Uplight |
I | 67 | 26W | 220-240Vac 50/60Hz | DALI-2 integriert | 2440 lm | 3000K |
| 2801R/WD50.OB99 | Ovales 42°x12° |
I | 67 | 26W | 220-240Vac 50/60Hz | DALI-2 integriert | 2440 lm | 3000K |
| 2801R/WD50.WB99 | Breit/50° |
I | 67 | 26W | 220-240Vac 50/60Hz | DALI-2 integriert | 2440 lm | 3000K |
| 2801R/WD50.AB99 | Asymmetrisch |
I | 67 | 26W | 220-240Vac 50/60Hz | DALI-2 integriert | 2440 lm | 3000K |
| 2801R/ND50.NB99 | Spot/12° |
I | 67 | 26W | 220-240Vac 50/60Hz | DALI-2 integriert | 2562 lm | 4000K |
| 2801R/ND50.MB99 | Mittel/28° Uplight |
I | 67 | 26W | 220-240Vac 50/60Hz | DALI-2 integriert | 2562 lm | 4000K |
| 2801R/ND50.OB99 | Ovales 42°x12° |
I | 67 | 26W | 220-240Vac 50/60Hz | DALI-2 integriert | 2562 lm | 4000K |
| 2801R/ND50.WB99 | Breit/50° |
I | 67 | 26W | 220-240Vac 50/60Hz | DALI-2 integriert | 2562 lm | 4000K |
| 2801R/ND50.AB99 | Asymmetrisch |
I | 67 | 26W | 220-240Vac 50/60Hz | DALI-2 integriert | 2562 lm | 4000K |

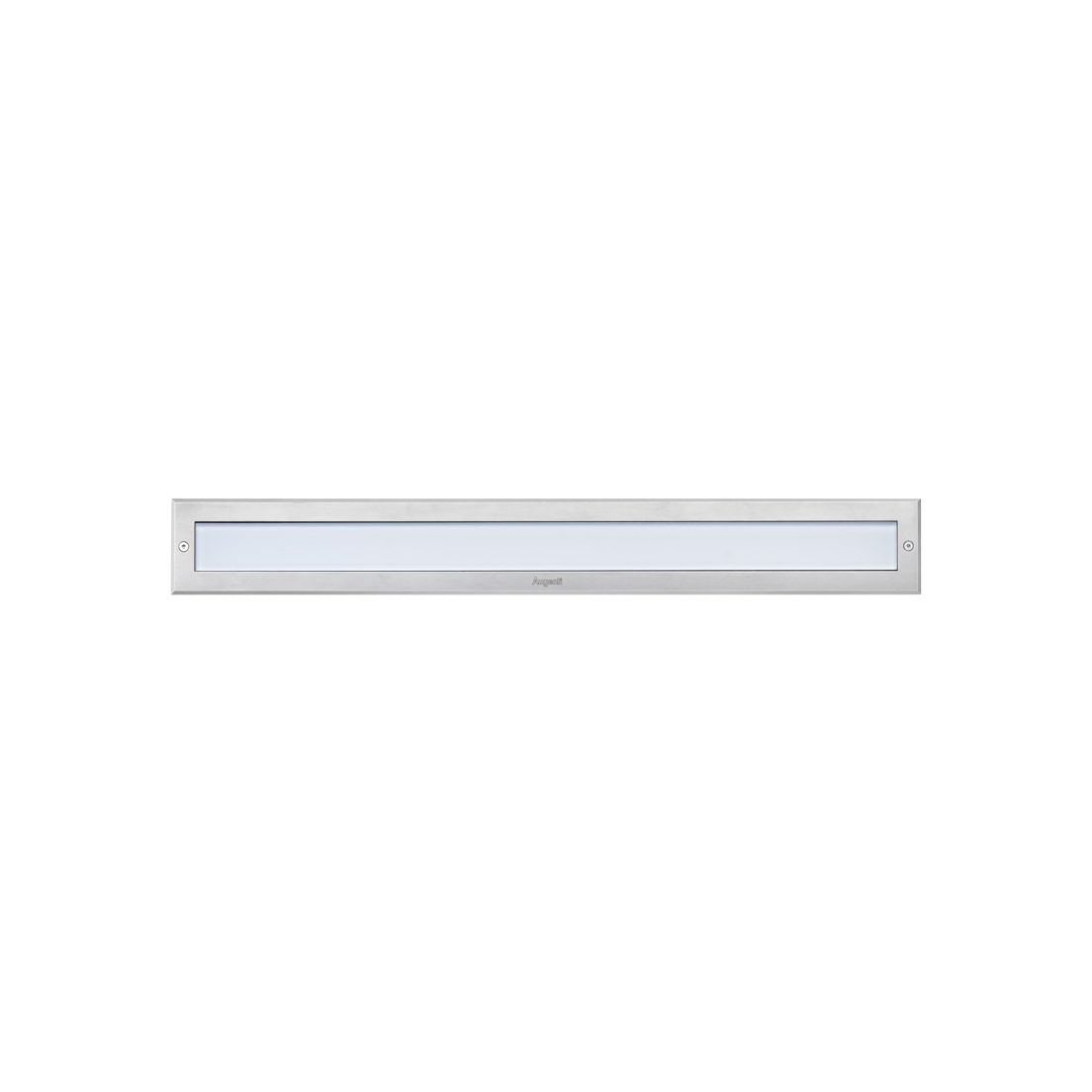

Einbau-Wallwasher Diffuse Lichtgabe L. 620
| Code | Lichtbündel | Klasse | IP | W | Netzteil | Dimmung | Leuchte | CCT LED |
|---|---|---|---|---|---|---|---|---|
| 2801R/HR50VS.99 | Diffus |
I | 67 | 13W | 220-240Vac 50/60Hz | ON/OFF | 644 lm | 2700K |
| 2801R/WR50VS.99 | Diffus |
I | 67 | 13W | 220-240Vac 50/60Hz | ON/OFF | 678 lm | 3000K |
| 2801R/NR50VS.99 | Diffus |
I | 67 | 13W | 220-240Vac 50/60Hz | ON/OFF | 718 lm | 4000K |
Einbau-Wallwasher DALI Diffuse Lichtgabe L. 620
| Code | Lichtbündel | Klasse | IP | W | Netzteil | Dimmung | Leuchte | CCT LED |
|---|---|---|---|---|---|---|---|---|
| 2801R/HD50VS.99 | Diffus |
I | 67 | 13W | 220-240Vac 50/60Hz | DALI-2 integriert | 644 lm | 2700K |
| 2801R/WD50VS.99 | Diffus |
I | 67 | 13W | 220-240Vac 50/60Hz | DALI-2 integriert | 678 lm | 3000K |
| 2801R/ND50VS.99 | Diffus |
I | 67 | 13W | 220-240Vac 50/60Hz | DALI-2 integriert | 718 lm | 4000K |

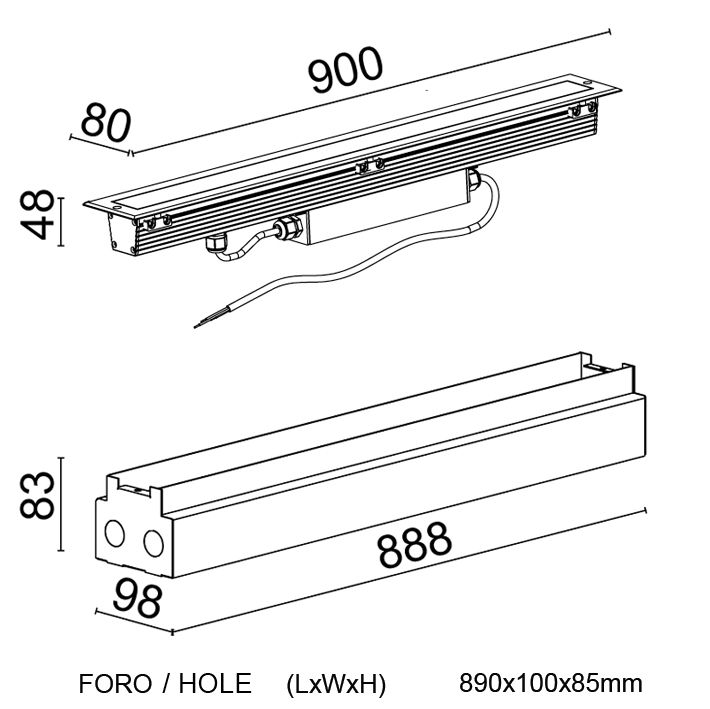

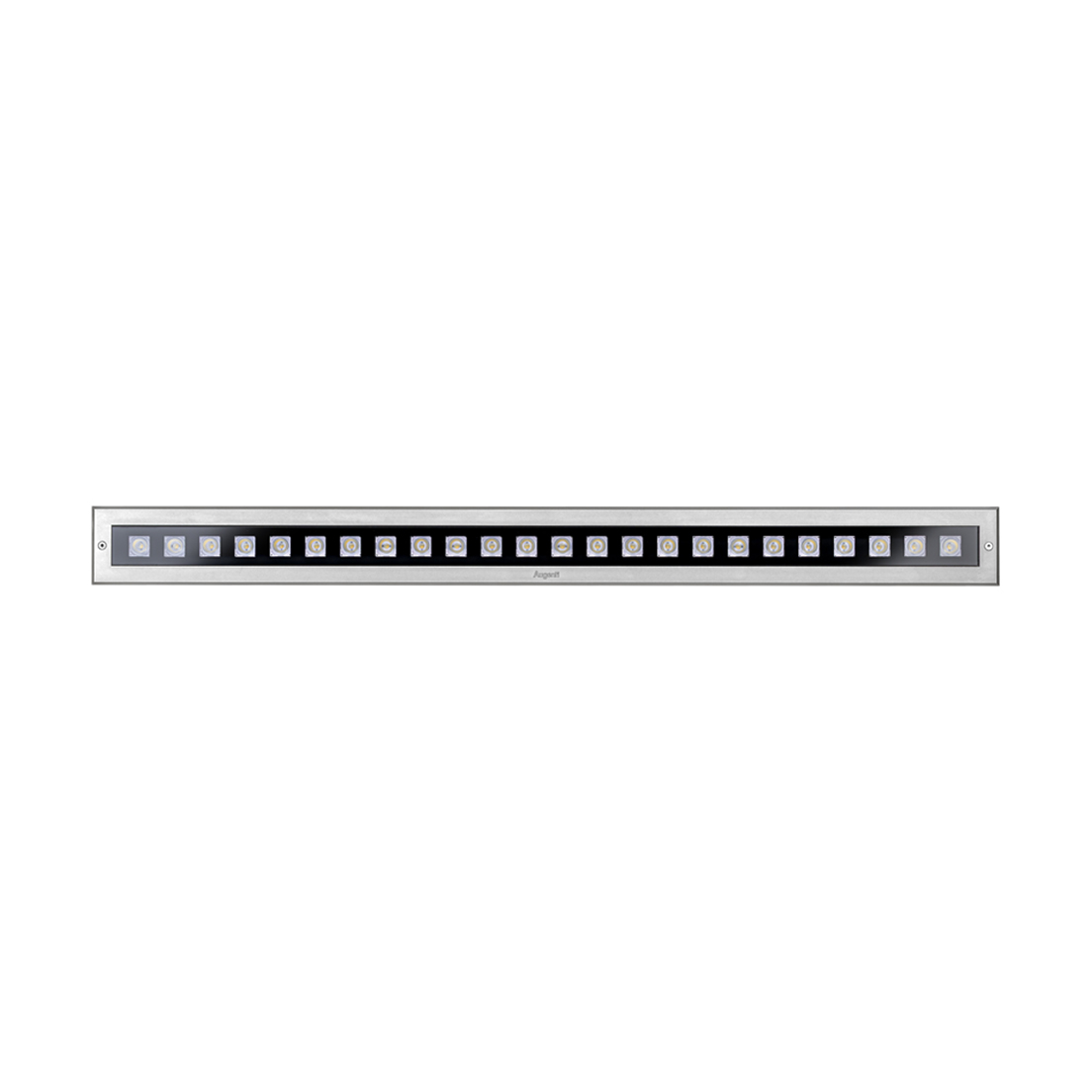

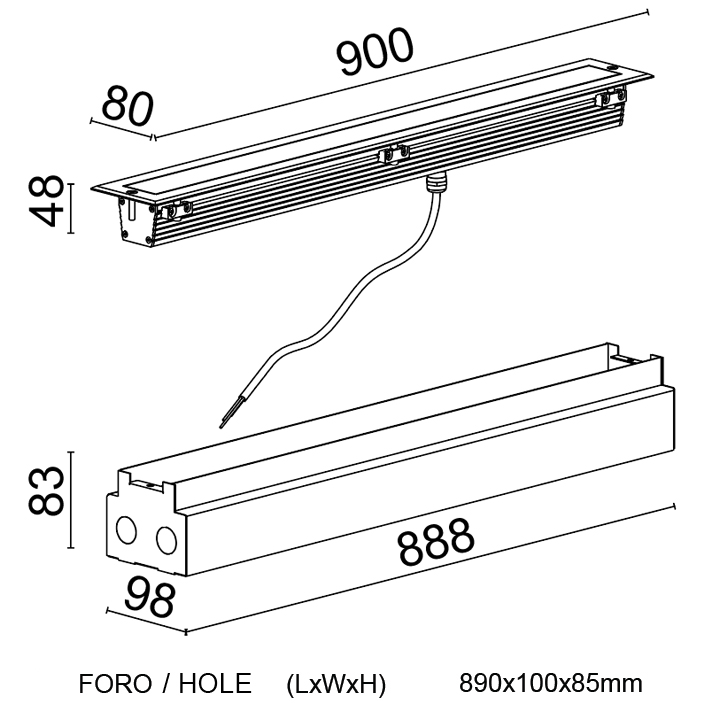

Einbau-Wallwasher mit Linsen L. 900
| Code | Lichtbündel | Klasse | IP | W | Netzteil | Dimmung | Leuchte | CCT LED |
|---|---|---|---|---|---|---|---|---|
| 2802R/HP50.NB99 | Spot/12° |
I | 67 | 42W | 220-240Vac 50/60Hz | ON/OFF | 3477 lm | 2700K |
| 2802R/HP50.MB99 | Mittel/28° Uplight |
I | 67 | 42W | 220-240Vac 50/60Hz | ON/OFF | 3477 lm | 2700K |
| 2802R/HP50.OB99 | Ovales 42°x12° |
I | 67 | 42W | 220-240Vac 50/60Hz | ON/OFF | 3477 lm | 2700K |
| 2802R/HP50.WB99 | breit/50° |
I | 67 | 42W | 220-240Vac 50/60Hz | ON/OFF | 3477 lm | 2700K |
| 2802R/HP50.AB99 | Asymmetrisch |
I | 67 | 42W | 220-240Vac 50/60Hz | ON/OFF | 3477 lm | 2700K |
| 2802R/WP50.NB99 | Spot/12° |
I | 67 | 42W | 220-240Vac 50/60Hz | ON/OFF | 3660 lm | 3000K |
| 2802R/WP50.MB99 | Mittel/28° |
I | 67 | 42W | 220-240Vac 50/60Hz | ON/OFF | 3660 lm | 3000K |
| 2802R/WP50.OB99 | Ovales 42°x12° |
I | 67 | 42W | 220-240Vac 50/60Hz | ON/OFF | 3660 lm | 3000K |
| 2802R/WP50.WB99 | Breit/50° |
I | 67 | 42W | 220-240Vac 50/60Hz | ON/OFF | 3660 lm | 3000K |
| 2802R/WP50.AB99 | Asymmetrisch |
I | 67 | 42W | 220-240Vac 50/60Hz | ON/OFF | 3660 lm | 3000K |
| 2802R/NP50.NB99 | Spot/12° |
I | 67 | 42W | 220-240Vac 50/60Hz | ON/OFF | 3843 lm | 4000K |
| 2802R/NP50.MB99 | Mittel/28° |
I | 67 | 42W | 220-240Vac 50/60Hz | ON/OFF | 3843 lm | 4000K |
| 2802R/NP50.OB99 | Ovales 42°x12° |
I | 67 | 42W | 220-240Vac 50/60Hz | ON/OFF | 3843 lm | 4000K |
| 2802R/NP50.WB99 | Breit/50° |
I | 67 | 42W | 220-240Vac 50/60Hz | ON/OFF | 3843 lm | 4000K |
| 2802R/NP50.AB99 | Asymmetrisch |
I | 67 | 42W | 220-240Vac 50/60Hz | ON/OFF | 3843 lm | 4000K |
Einbau-Wallwasher DALI mit Linsen L. 900
| Code | Lichtbündel | Klasse | IP | W | Netzteil | Dimmung | Leuchte | CCT LED |
|---|---|---|---|---|---|---|---|---|
| 2802R/HD50.NB99 | Spot/12° |
I | 67 | 42W | 220-240Vac 50/60Hz | DALI-2 integriert | 3477 lm | 2700K |
| 2802R/HD50.MB99 | Mittel/28° Uplight |
I | 67 | 42W | 220-240Vac 50/60Hz | DALI-2 integriert | 3477 lm | 2700K |
| 2802R/HD50.OB99 | Ovales 42°x12° |
I | 67 | 42W | 220-240Vac 50/60Hz | DALI-2 integriert | 3477 lm | 2700K |
| 2802R/HD50.WB99 | breit/50° |
I | 67 | 42W | 220-240Vac 50/60Hz | DALI-2 integriert | 3477 lm | 2700K |
| 2802R/HD50.AB99 | Asymmetrisch |
I | 67 | 42W | 220-240Vac 50/60Hz | DALI-2 integriert | 3477 lm | 2700K |
| 2802R/WD50.NB99 | Spot/12° |
I | 67 | 42W | 220-240Vac 50/60Hz | DALI-2 integriert | 3660 lm | 3000K |
| 2802R/WD50.MB99 | Mittel/28° |
I | 67 | 42W | 220-240Vac 50/60Hz | DALI-2 integriert | 3660 lm | 3000K |
| 2802R/WD50.OB99 | Ovales 42°x12° |
I | 67 | 42W | 220-240Vac 50/60Hz | DALI-2 integriert | 3660 lm | 3000K |
| 2802R/WD50.WB99 | Breit/50° |
I | 67 | 42W | 220-240Vac 50/60Hz | DALI-2 integriert | 3660 lm | 3000K |
| 2802R/WD50.AB99 | Asymmetrisch |
I | 67 | 42W | 220-240Vac 50/60Hz | DALI-2 integriert | 3660 lm | 3000K |
| 2802R/ND50.NB99 | Spot/12° |
I | 67 | 42W | 220-240Vac 50/60Hz | DALI-2 integriert | 3843 lm | 4000K |
| 2802R/ND50.MB99 | Mittel/28° |
I | 67 | 42W | 220-240Vac 50/60Hz | DALI-2 integriert | 3843 lm | 4000K |
| 2802R/ND50.OB99 | Ovales 42°x12° |
I | 67 | 42W | 220-240Vac 50/60Hz | DALI-2 integriert | 3843 lm | 4000K |
| 2802R/ND50.WB99 | Breit/50° |
I | 67 | 42W | 220-240Vac 50/60Hz | DALI-2 integriert | 3843 lm | 4000K |
| 2802R/ND50.AB99 | Asymmetrisch |
I | 67 | 42W | 220-240Vac 50/60Hz | DALI-2 integriert | 3843 lm | 4000K |

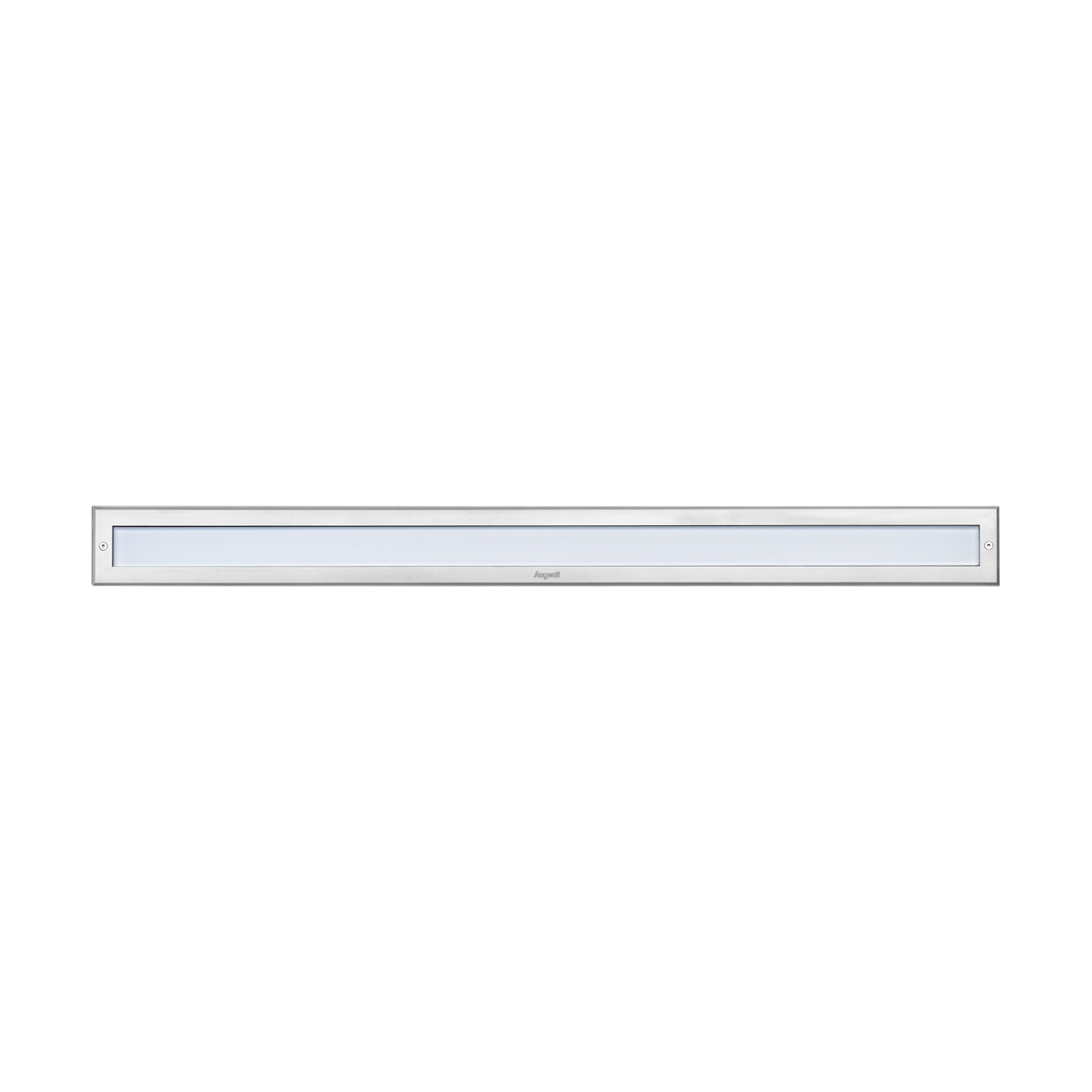

Einbau-Wallwasher Diffuse Lichtgabe L. 900
| Code | Lichtbündel | Klasse | IP | W | Netzteil | Dimmung | Leuchte | CCT LED |
|---|---|---|---|---|---|---|---|---|
| 2802R/HR50VS.99 | Diffus |
I | 67 | 19W | 220-240Vac 50/60Hz | ON/OFF | 969 lm | 2700K |
| 2802R/WR50VS.99 | Diffus |
I | 67 | 19W | 220-240Vac 50/60Hz | ON/OFF | 1020 lm | 3000K |
| 2802R/NR50VS.99 | Diffus |
I | 67 | 19W | 220-240Vac 50/60Hz | ON/OFF | 1076 lm | 4000K |
Einbau-Wallwasher DALI Diffuse Lichtgabe L. 900
| Code | Lichtbündel | Klasse | IP | W | Netzteil | Dimmung | Leuchte | CCT LED |
|---|---|---|---|---|---|---|---|---|
| 2802R/HD50VS.99 | Diffus |
I | 67 | 19W | 220-240Vac 50/60Hz | DALI-2 integriert | 969 lm | 2700K |
| 2802R/WD50VS.99 | Diffus |
I | 67 | 19W | 220-240Vac 50/60Hz | DALI-2 integriert | 1020 lm | 3000K |
| 2802R/ND50VS.99 | Diffus |
I | 67 | 19W | 220-240Vac 50/60Hz | DALI-2 integriert | 1076 lm | 4000K |

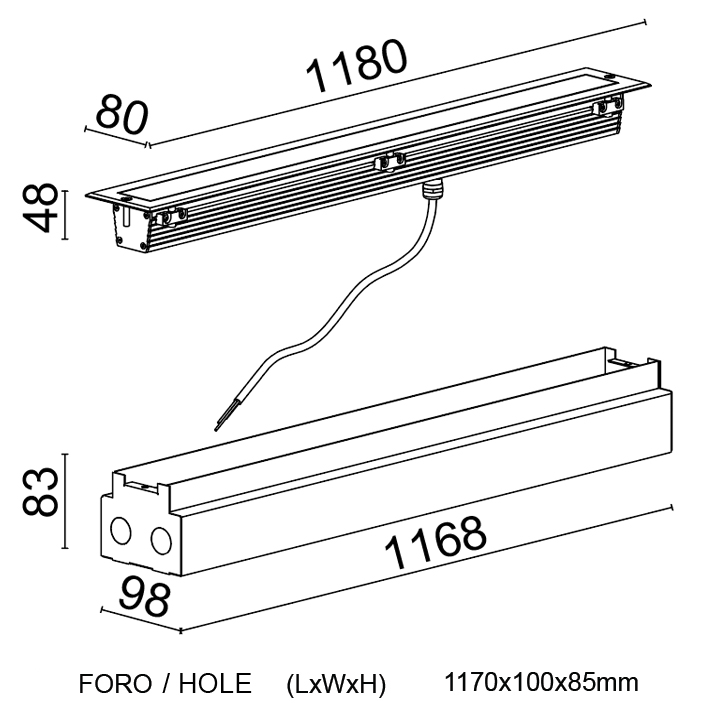

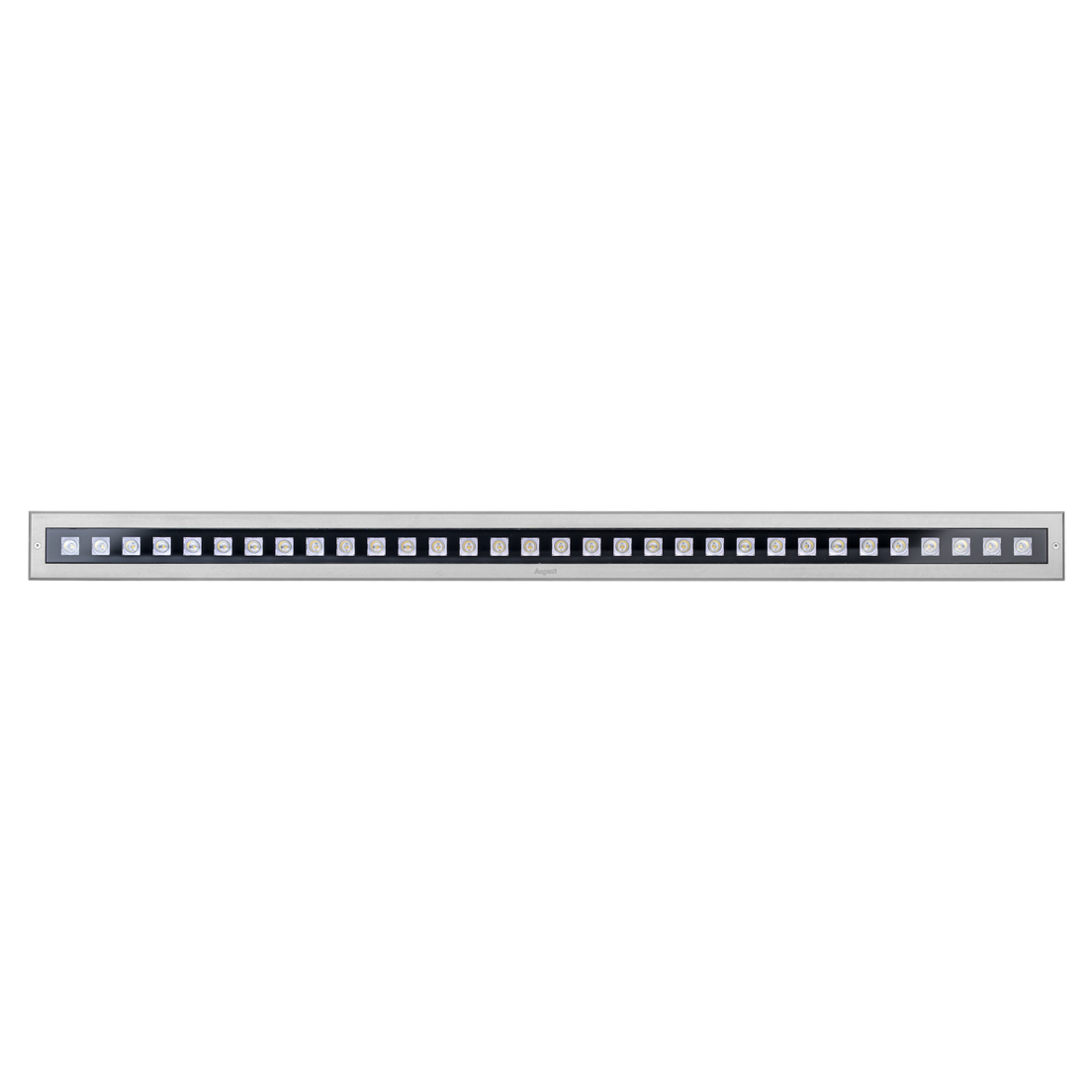

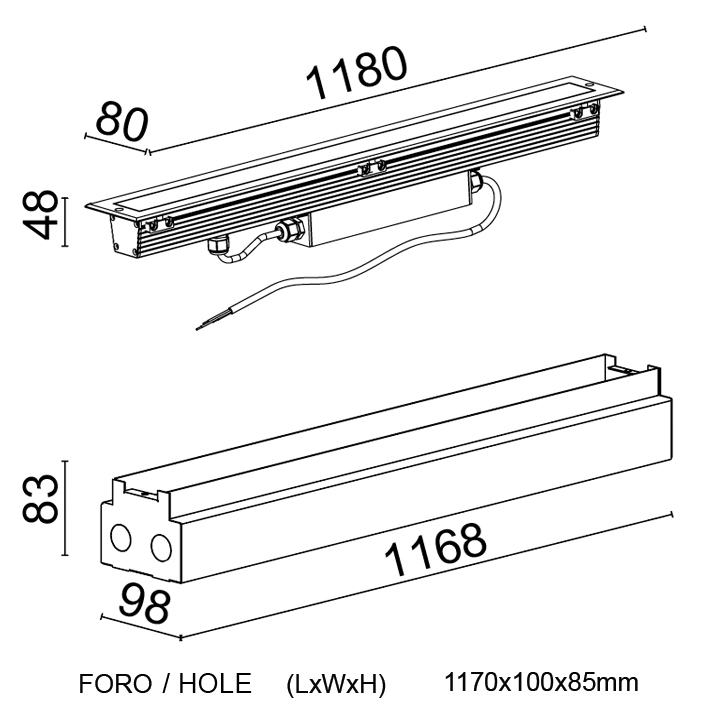

Einbau-Wallwasher mit Linsen L. 1180
| Code | Lichtbündel | Klasse | IP | W | Netzteil | Dimmung | Leuchte | CCT LED |
|---|---|---|---|---|---|---|---|---|
| 2803R/HP50.NB99 | Spot/12° |
I | 67 | 54W | 220-240Vac 50/60Hz | ON/OFF | 4636 lm | 2700K |
| 2803R/HP50.MB99 | Mittel/28° Uplight |
I | 67 | 54W | 220-240Vac 50/60Hz | ON/OFF | 4636 lm | 2700K |
| 2803R/HP50.OB99 | Ovales 42°x12° |
I | 67 | 54W | 220-240Vac 50/60Hz | ON/OFF | 4636 lm | 2700K |
| 2803R/HP50.WB99 | breit/50° |
I | 67 | 54W | 220-240Vac 50/60Hz | ON/OFF | 4636 lm | 2700K |
| 2803R/HP50.AB99 | Asymmetrisch |
I | 67 | 54W | 220-240Vac 50/60Hz | ON/OFF | 4636 lm | 2700K |
| 2803R/WP50.NB99 | Spot/12° |
I | 67 | 54W | 220-240Vac 50/60Hz | ON/OFF | 4880 lm | 3000K |
| 2803R/WP50.MB99 | Mittel/28° |
I | 67 | 54W | 220-240Vac 50/60Hz | ON/OFF | 4880 lm | 3000K |
| 2803R/WP50.OB99 | Ovales 42°x12° |
I | 67 | 54W | 220-240Vac 50/60Hz | ON/OFF | 4880 lm | 3000K |
| 2803R/WP50.WB99 | Breit/50° |
I | 67 | 54W | 220-240Vac 50/60Hz | ON/OFF | 4880 lm | 3000K |
| 2803R/WP50.AB99 | Asymmetrisch |
I | 67 | 54W | 220-240Vac 50/60Hz | ON/OFF | 4880 lm | 3000K |
| 2803R/NP50.NB99 | Spot/12° |
I | 67 | 54W | 220-240Vac 50/60Hz | ON/OFF | 5124 lm | 4000K |
| 2803R/NP50.MB99 | Mittel/28° |
I | 67 | 54W | 220-240Vac 50/60Hz | ON/OFF | 5124 lm | 4000K |
| 2803R/NP50.OB99 | Ovales 42°x12° |
I | 67 | 54W | 220-240Vac 50/60Hz | ON/OFF | 5124 lm | 4000K |
| 2803R/NP50.WB99 | Breit/50° |
I | 67 | 54W | 220-240Vac 50/60Hz | ON/OFF | 5124 lm | 4000K |
| 2803R/NP50.AB99 | Asymmetrisch |
I | 67 | 54W | 220-240Vac 50/60Hz | ON/OFF | 5124 lm | 4000K |
Einbau-Wallwasher DALI mit Linsen L. 1180
| Code | Lichtbündel | Klasse | IP | W | Netzteil | Dimmung | Leuchte | CCT LED |
|---|---|---|---|---|---|---|---|---|
| 2803R/HD50.NB99 | Spot/12° |
I | 67 | 54W | 220-240Vac 50/60Hz | DALI-2 integriert | 4636 lm | 2700K |
| 2803R/HD50.MB99 | Mittel/28° Uplight |
I | 67 | 54W | 220-240Vac 50/60Hz | DALI-2 integriert | 4636 lm | 2700K |
| 2803R/HD50.OB99 | Ovales 42°x12° |
I | 67 | 54W | 220-240Vac 50/60Hz | DALI-2 integriert | 4636 lm | 2700K |
| 2803R/HD50.WB99 | breit/50° |
I | 67 | 54W | 220-240Vac 50/60Hz | DALI-2 integriert | 4636 lm | 2700K |
| 2803R/HD50.AB99 | Asymmetrisch |
I | 67 | 54W | 220-240Vac 50/60Hz | DALI-2 integriert | 4636 lm | 2700K |
| 2803R/WD50.NB99 | Spot/12° |
I | 67 | 54W | 220-240Vac 50/60Hz | DALI-2 integriert | 4880 lm | 3000K |
| 2803R/WD50.MB99 | Mittel/28° |
I | 67 | 54W | 220-240Vac 50/60Hz | DALI-2 integriert | 4880 lm | 3000K |
| 2803R/WD50.OB99 | Ovales 42°x12° |
I | 67 | 54W | 220-240Vac 50/60Hz | DALI-2 integriert | 4880 lm | 3000K |
| 2803R/WD50.WB99 | Breit/50° |
I | 67 | 54W | 220-240Vac 50/60Hz | DALI-2 integriert | 4880 lm | 3000K |
| 2803R/WD50.AB99 | Asymmetrisch |
I | 67 | 54W | 220-240Vac 50/60Hz | DALI-2 integriert | 4880 lm | 3000K |
| 2803R/ND50.NB99 | Spot/12° |
I | 67 | 54W | 220-240Vac 50/60Hz | DALI-2 integriert | 5124 lm | 4000K |
| 2803R/ND50.MB99 | Mittel/28° |
I | 67 | 54W | 220-240Vac 50/60Hz | DALI-2 integriert | 5124 lm | 4000K |
| 2803R/ND50.OB99 | Ovales 42°x12° |
I | 67 | 54W | 220-240Vac 50/60Hz | DALI-2 integriert | 5124 lm | 4000K |
| 2803R/ND50.WB99 | Breit/50° |
I | 67 | 54W | 220-240Vac 50/60Hz | DALI-2 integriert | 5124 lm | 4000K |
| 2803R/ND50.AB99 | Asymmetrisch |
I | 67 | 54W | 220-240Vac 50/60Hz | DALI-2 integriert | 5124 lm | 4000K |

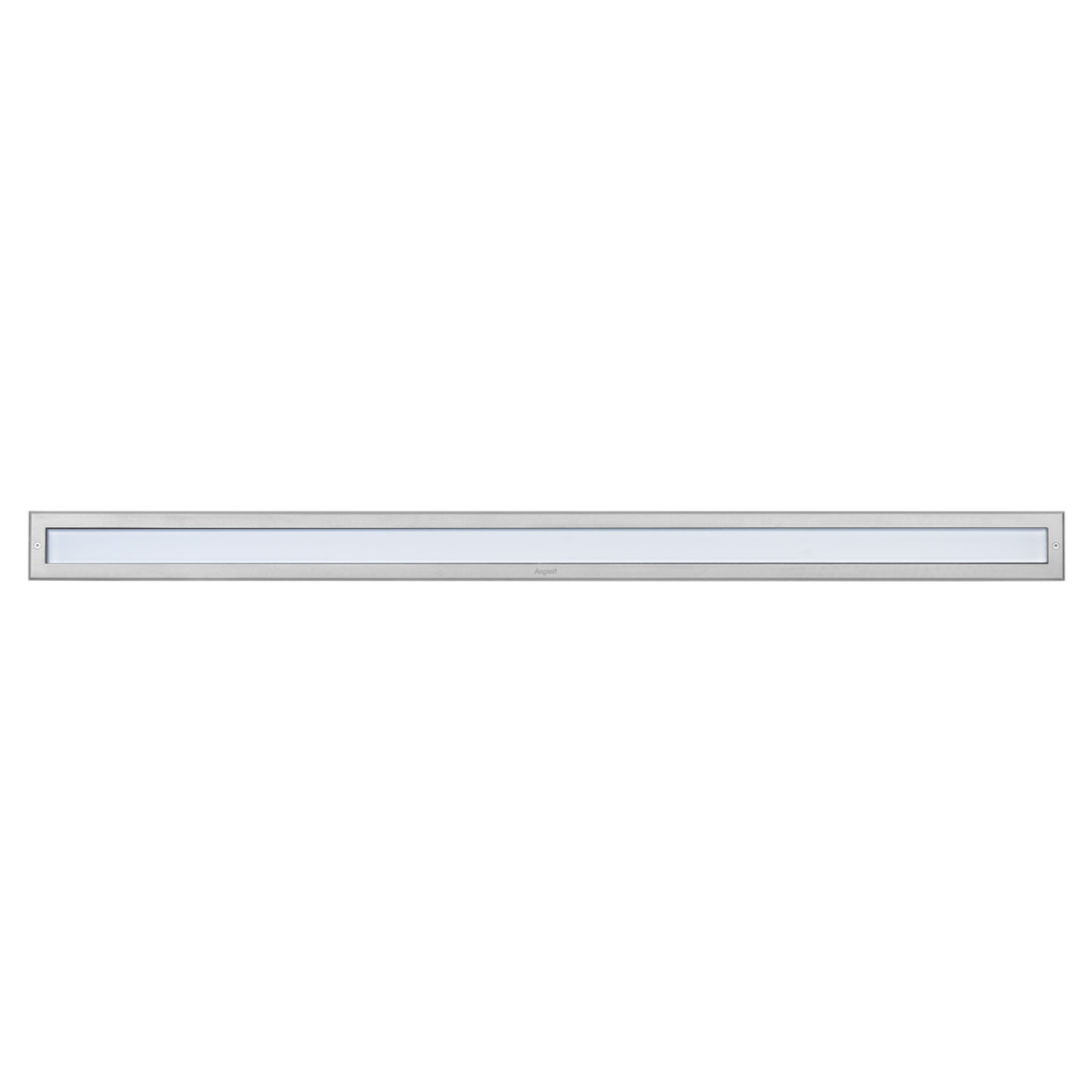

Einbau-Wallwasher Diffuse Lichtgabe L. 1180
| Code | Lichtbündel | Klasse | IP | W | Netzteil | Dimmung | Leuchte | CCT LED |
|---|---|---|---|---|---|---|---|---|
| 2803R/HR50VS.99 | Diffus |
I | 67 | 26W | 220-240Vac 50/60Hz | ON/OFF | 1287 lm | 2700K |
| 2803R/WR50VS.99 | Diffus |
I | 67 | 26W | 220-240Vac 50/60Hz | ON/OFF | 1355 lm | 3000K |
| 2803R/NR50VS.99 | Diffus |
I | 67 | 26W | 220-240Vac 50/60Hz | ON/OFF | 1435 lm | 4000K |
Einbau-Wallwasher DALI Diffuse Lichtgabe L. 1180
| Code | Lichtbündel | Klasse | IP | W | Netzteil | Dimmung | Leuchte | CCT LED |
|---|---|---|---|---|---|---|---|---|
| 2803R/HD50VS.99 | Diffus |
I | 67 | 26W | 220-240Vac 50/60Hz | DALI-2 integriert | 1287 lm | 2700K |
| 2803R/WD50VS.99 | Diffus |
I | 67 | 26W | 220-240Vac 50/60Hz | DALI-2 integriert | 1355 lm | 3000K |
| 2803R/ND50VS.99 | Diffus |
I | 67 | 26W | 220-240Vac 50/60Hz | DALI-2 integriert | 1435 lm | 4000K |
