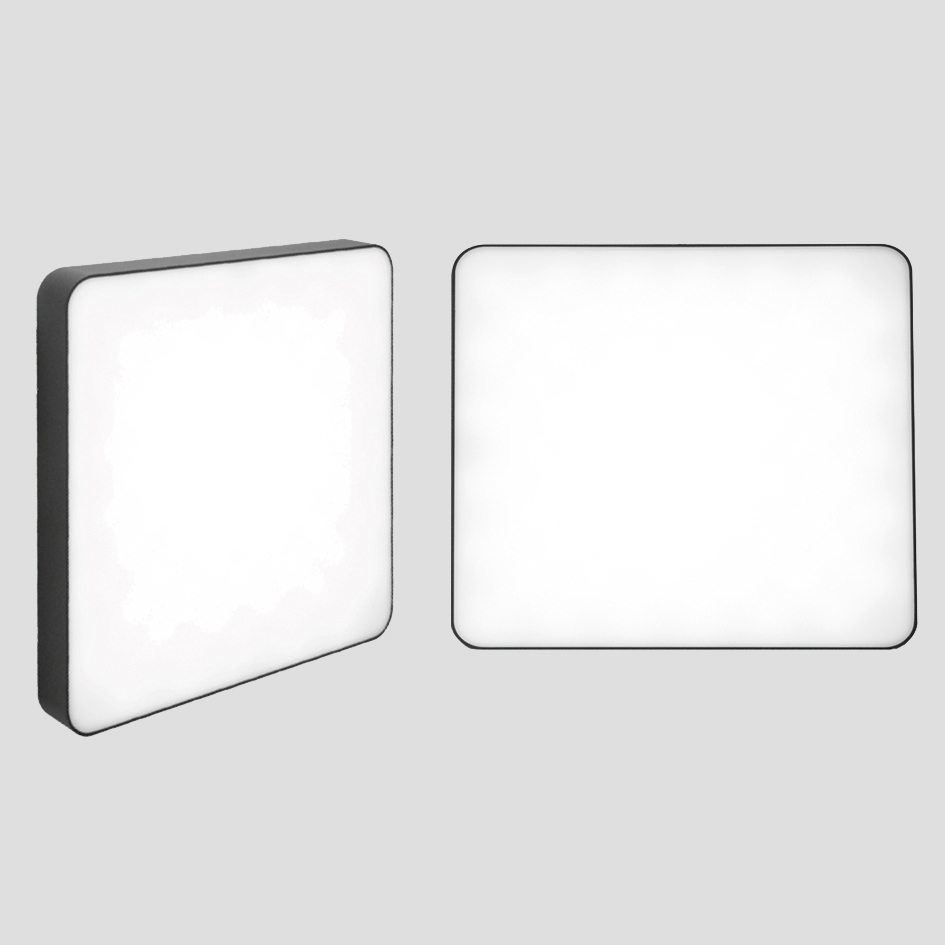

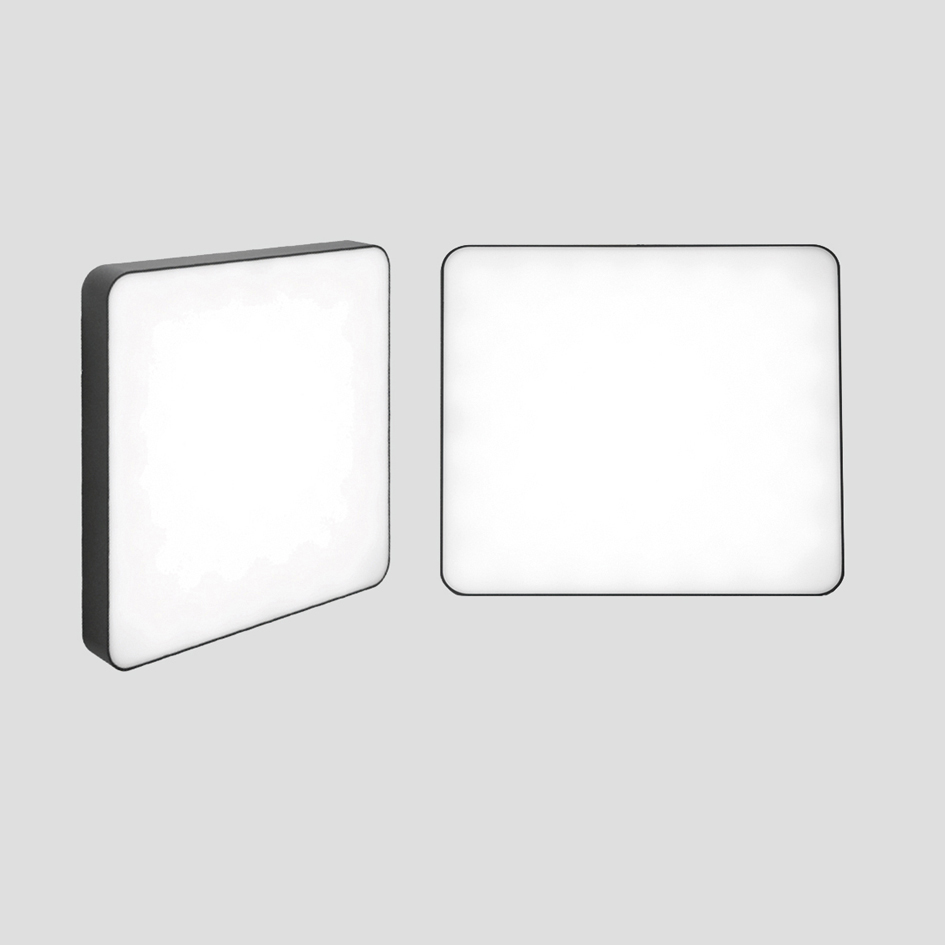

Altair Square Wall or ceiling luminaire
Ceiling light for wall- or ceiling-mounted installation, available in two sizes with white opal diffuser for greater uniformity of the luminous flux. Independent wall-mounting bracket.
Installation Type
Wall fixing and ceiling installation
Body
Die-cast aluminium
Frame
Die-cast aluminium
Screen
Extra-clear float glass 4mm with white diffusing silk-screen printing
Seals
Closed-cell EPDM rubber
Screws
Stainless steel A2
Paint
Anti-corrosive UV stabilised polyester powder

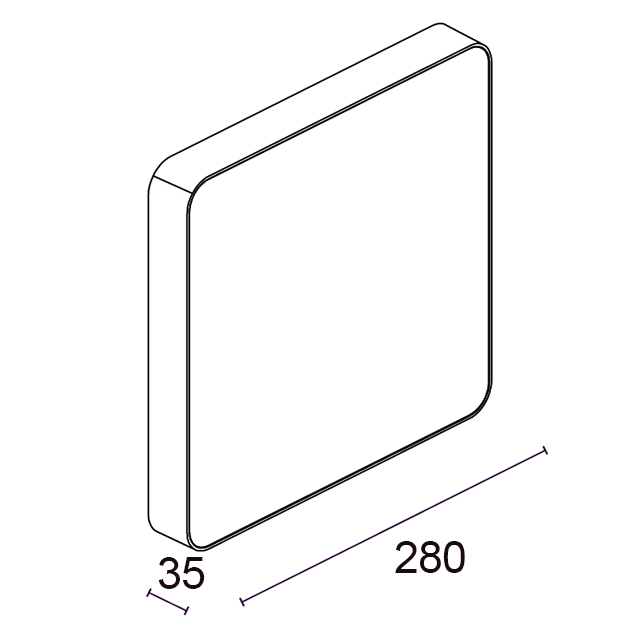

Ceiling luminaire L. 280 Diffuse Emission
| Code | Beam | Class | IP | W | Power supply | Control | Fixture | CCT LED |
|---|---|---|---|---|---|---|---|---|
| 8412C/WR35VO |  Diffuse >110° |
II | 65 | 22W | 220-240Vac 50/60Hz | ON/OFF | 1150 lm | 3000K |
| 8412C/NR35VO | Diffuse >110° |
II | 65 | 22W | 220-240Vac 50/60Hz | ON/OFF | 1212 lm | 4000K |
Ceiling luminaire DALI L. 280 Diffuse Emission
| Code | Beam | Class | IP | W | Power supply | Control | Fixture | CCT LED |
|---|---|---|---|---|---|---|---|---|
| 8412C/WD35VO | Diffuse >110° |
II | 65 | 22W | 220-240Vac 50/60Hz | DALI-2 integrated | 1150 lm | 3000K |
| 8412C/ND35VO | Diffuse >110° |
II | 65 | 22W | 220-240Vac 50/60Hz | DALI-2 integrated | 1212 lm | 4000K |
Ceiling luminaire L. 280 Diffuse Emission -WITH EMERGENCY-
| Code | Beam | Class | IP | W | Power supply | Control | Fixture | CCT LED |
|---|---|---|---|---|---|---|---|---|
| 8412C/WE35VO | Diffuse >110° |
I | 65 | 22W | 220-240Vac 50/60Hz | DALI available on request | 1150 lm | 3000K |
| 8412C/NE35VO | Diffuse >110° |
I | 65 | 22W | 220-240Vac 50/60Hz | DALI available on request | 1212 lm | 4000K |
