Maxima One Column for urban lighting
Maxima comes in two configurations: the first, suitable for residential installation, has a 370 mm lighting body and offers 4 different heights starting from 570 mm and reaching a maximum of 1600 mm. The second, also suitable for semi-urban and urban installation, has a 610 mm lighting body and heights ranging from 1200 mm to 3000 mm. Consisting of chrome-plated louvre reflectors, in addition to guaranteeing a diffuse emission and limiting glare, it actively participates in designing the luminaire in its shape. It is also available with screened louvres suitable for compliance with the Regulations on Light Pollution. The structure is supplied with a flange made with metal clamps necessary to guarantee its stability. The lamp body, firmly connected to the pole by means of a bayonet coupling, makes it easily removable during normal maintenance operations. Dali dimmable on request with extra charge.
Installation Type
Ground installation
Body
Pole: Extruded aluminium alloy - Body/Base: Die-cast aluminium alloy
Screen
Transparent Polycarbonate
Seals
Closed-cell EPDM rubber
Screws
Stainless steel A2
Paint
Anti-corrosive UV stabilised polyester powder
Control
DALI available on request

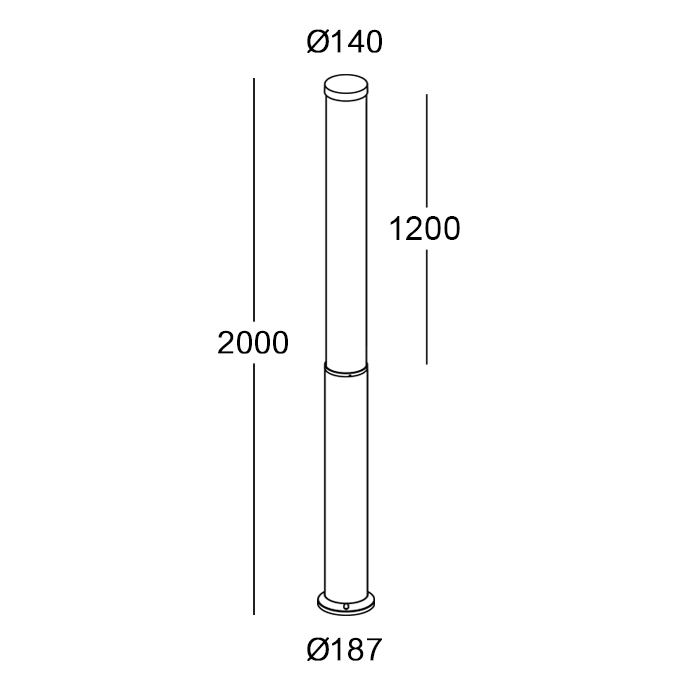

Pole H. 2000 with louvre
| Code | Beam | Class | IP | W | Power supply | Control | Fixture | CCT LED |
|---|---|---|---|---|---|---|---|---|
| 375F1/WR8.PT |  Shielded Louvre 360° |
I | 65 | 44W | 220-240Vac 50/60Hz | DALI available on request | 2618 lm | 3000K |
| 375F1/NR8.PT | Shielded Louvre 360° |
I | 65 | 44W | 220-240Vac 50/60Hz | DALI available on request | 2713 lm | 4000K |
Pole H. 2000 with anti-glare louvre
| Code | Beam | Class | IP | W | Power supply | Control | Fixture | CCT LED |
|---|---|---|---|---|---|---|---|---|
| 375F1/WR8.X3 | Shielded anti-pollution louvre 360° |
I | 65 | 44W | 220-240Vac 50/60Hz | DALI available on request | 1201 lm | 3000K |
| 375F1/NR8.X3 | Shielded anti-pollution louvre 360° |
I | 65 | 44W | 220-240Vac 50/60Hz | DALI available on request | 1257 lm | 4000K |

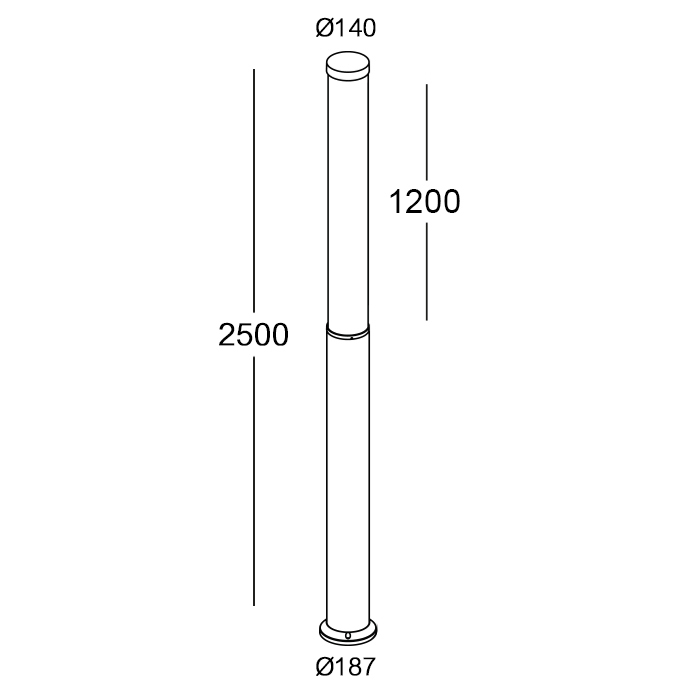

Pole H. 2480 with louvre
| Code | Beam | Class | IP | W | Power supply | Control | Fixture | CCT LED |
|---|---|---|---|---|---|---|---|---|
| 375F2/WR8.PT | Shielded Louvre 360° |
I | 65 | 44W | 220-240Vac 50/60Hz | DALI available on request | 2618 lm | 3000K |
| 375F2/NR8.PT | Shielded Louvre 360° |
I | 65 | 44W | 220-240Vac 50/60Hz | DALI available on request | 2713 lm | 4000K |
Pole H. 2480 with anti-glare louvre
| Code | Beam | Class | IP | W | Power supply | Control | Fixture | CCT LED |
|---|---|---|---|---|---|---|---|---|
| 375F2/WR8.X3 | Shielded anti-pollution louvre 360° |
I | 65 | 44W | 220-240Vac 50/60Hz | DALI available on request | 1201 lm | 3000K |
| 375F2/NR8.X3 | Shielded anti-pollution louvre 360° |
I | 65 | 44W | 220-240Vac 50/60Hz | DALI available on request | 1257 lm | 4000K |

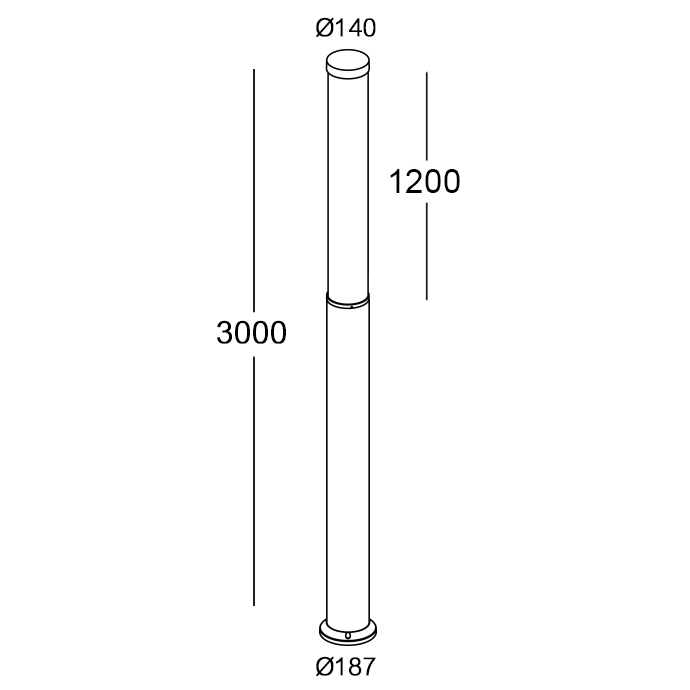

Pole H. 3000 with louvre
| Code | Beam | Class | IP | W | Power supply | Control | Fixture | CCT LED |
|---|---|---|---|---|---|---|---|---|
| 375F3/WR8.PT | Shielded Louvre 360° |
I | 65 | 44W | 220-240Vac 50/60Hz | DALI available on request | 2618 lm | 3000K |
| 375F3/NR8.PT | Shielded Louvre 360° |
I | 65 | 44W | 220-240Vac 50/60Hz | DALI available on request | 2713 lm | 4000K |
Pole H. 3000 with anti-glare louvre
| Code | Beam | Class | IP | W | Power supply | Control | Fixture | CCT LED |
|---|---|---|---|---|---|---|---|---|
| 375F3/WR8.X3 | Shielded anti-pollution louvre 360° |
I | 65 | 44W | 220-240Vac 50/60Hz | DALI available on request | 1201 lm | 3000K |
| 375F3/NR8.X3 | Shielded anti-pollution louvre 360° |
I | 65 | 44W | 220-240Vac 50/60Hz | DALI available on request | 1257 lm | 4000K |
