Naos401 Column Bollards luminaire

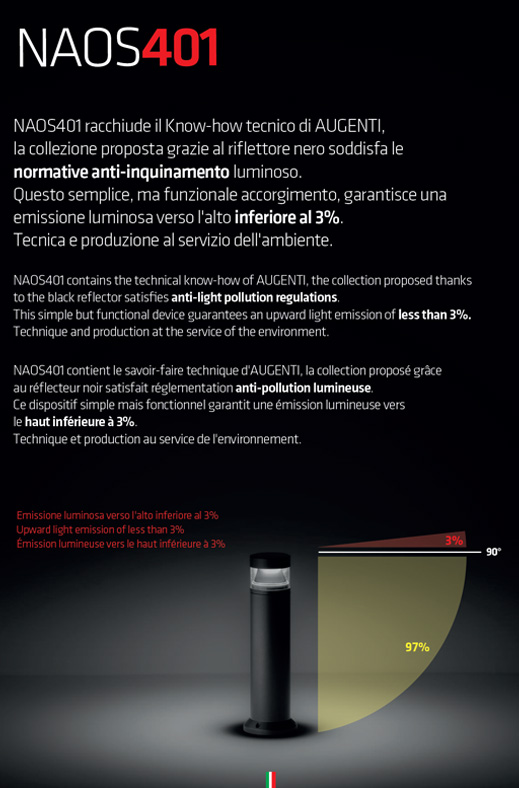

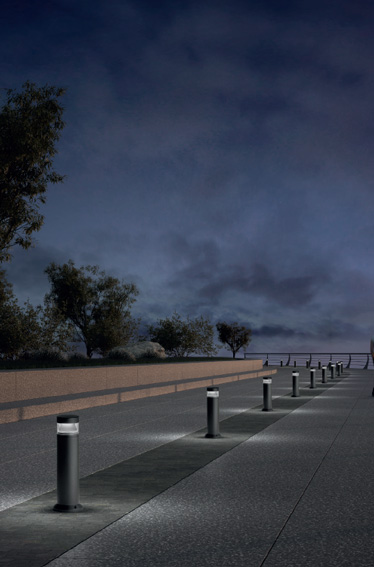

Naos has been developed to cover various residential lighting needs for paths, gardens and avenues. This new bollard is presented with two different optics, the first, with a white diffuser (Naos400), designed to satisfy the need for more lux. The second version (Naos401), on the other hand, with a black reflector, guarantees anti-glare and exceeds all anti-light pollution regulations. Both versions are proposed with powers of 14W and 20W.
Installation Type
Ground installation
Body
Pole: Extruded aluminium alloy - Body/Base: Die-cast aluminium alloy
Screen
Transparent Polycarbonate
Seals
Closed-cell EPDM rubber
Screws
Stainless steel A2
Paint
Anti-corrosive UV stabilised polyester powder
Control
ON/OFF
Wiring
Included

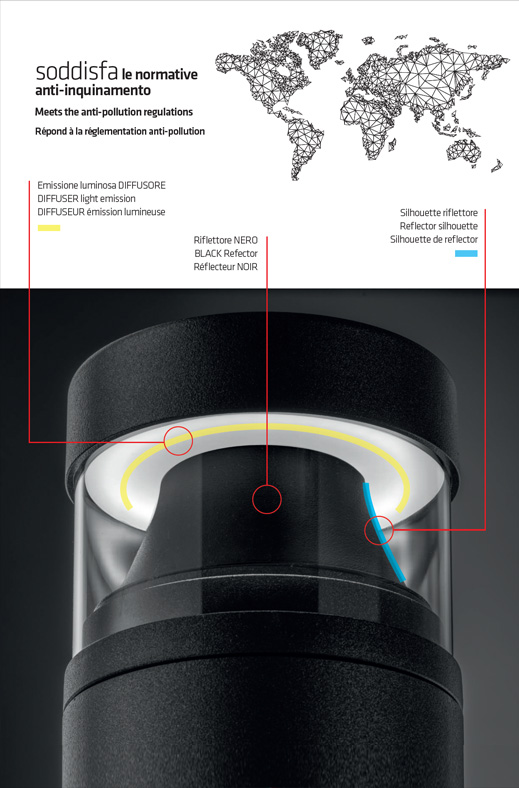

Optik distribution
Black reflector
Download BrochureNew Naos_2022

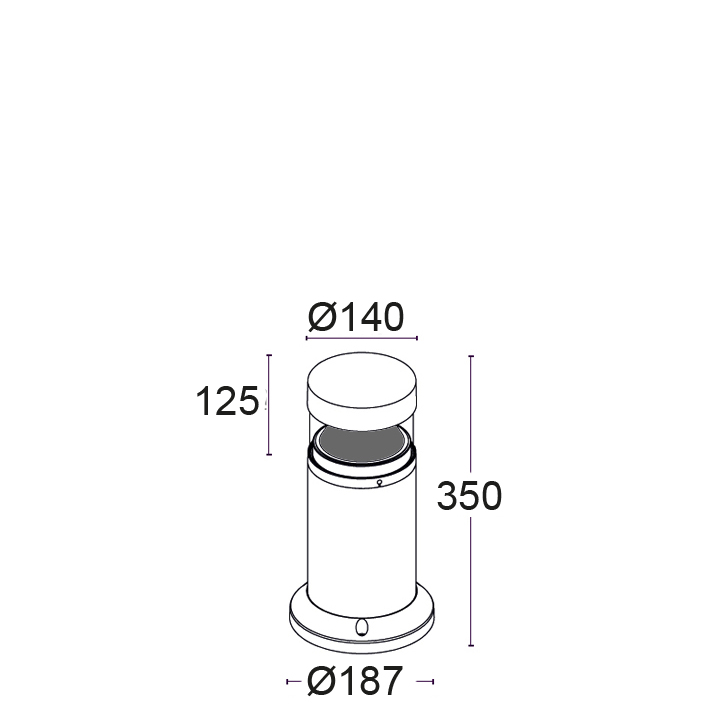

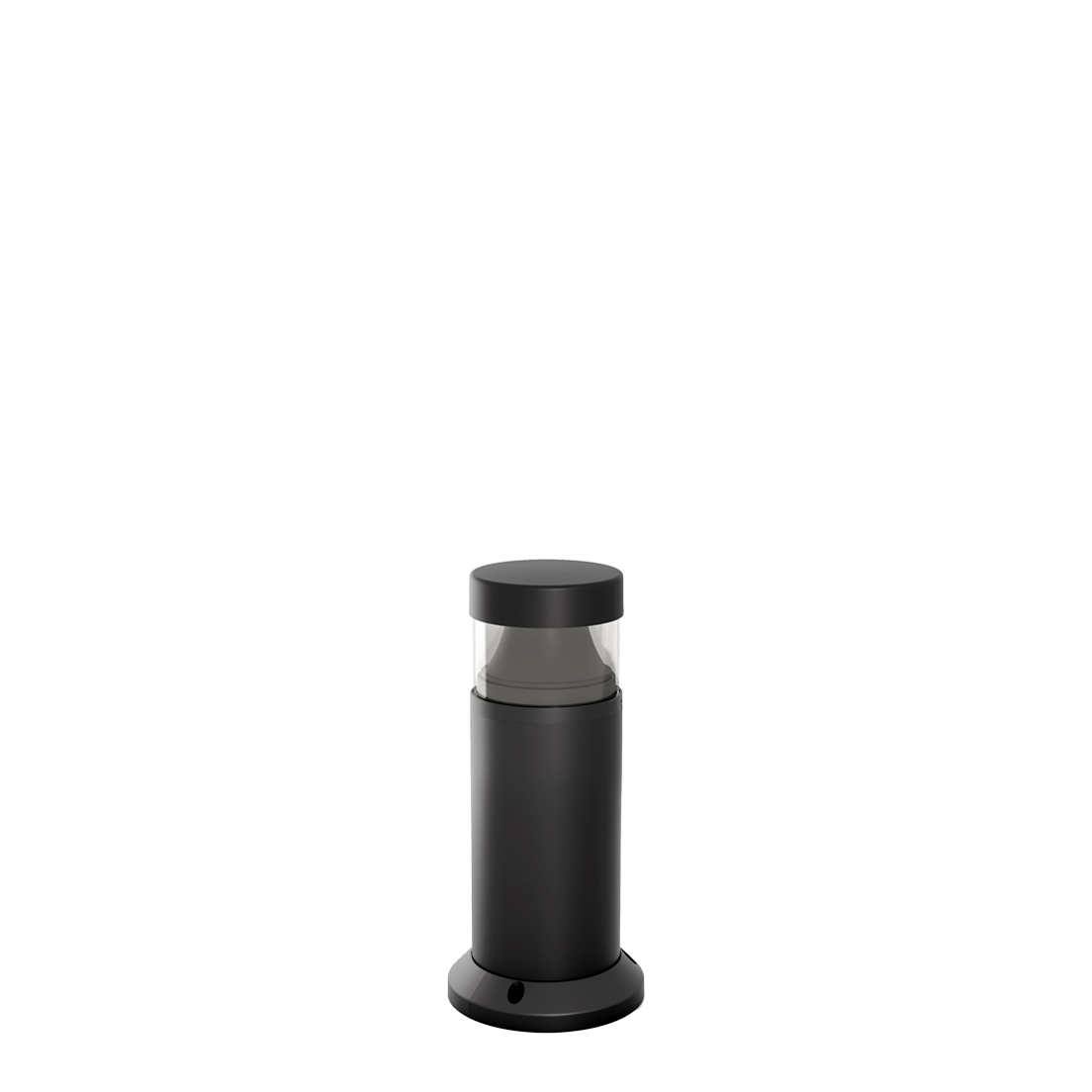

Bollard H. 350 Emission 360°/Black reflector
| Code | Beam | Class | IP | W | Power supply | Control | Fixture | CCT LED |
|---|---|---|---|---|---|---|---|---|
| 401F0/HR35.PT |  Indirect/Diffused 360° |
II | 65 | 14W | 220-240Vac 50/60Hz | ON/OFF | 603 lm | 2700K |
| 401F0/WR35.PT | Indirect/Diffused 360° |
II | 65 | 14W | 220-240Vac 50/60Hz | ON/OFF | 635 lm | 3000K |
| 401F0/NR35.PT | Indirect/Diffused 360° |
II | 65 | 14W | 220-240Vac 50/60Hz | ON/OFF | 670 lm | 4000K |
Bollard TRIAC H. 350 Emission 360°/Black reflector
| Code | Beam | Class | IP | W | Power supply | Control | Fixture | CCT LED |
|---|---|---|---|---|---|---|---|---|
| 401F0/HR50.PT | Indirect/Diffused 360° |
II | 65 | 20W | 220-240Vac 50/60Hz | Phase cut dimmable | 855 lm | 2700K |
| 401F0/WR50.PT | Indirect/Diffused 360° |
II | 65 | 20W | 220-240Vac 50/60Hz | Phase cut dimmable | 900 lm | 3000K |
| 401F0/NR50.PT | Indirect/Diffused 360° |
II | 65 | 20W | 220-240Vac 50/60Hz | Phase cut dimmable | 950 lm | 4000K |

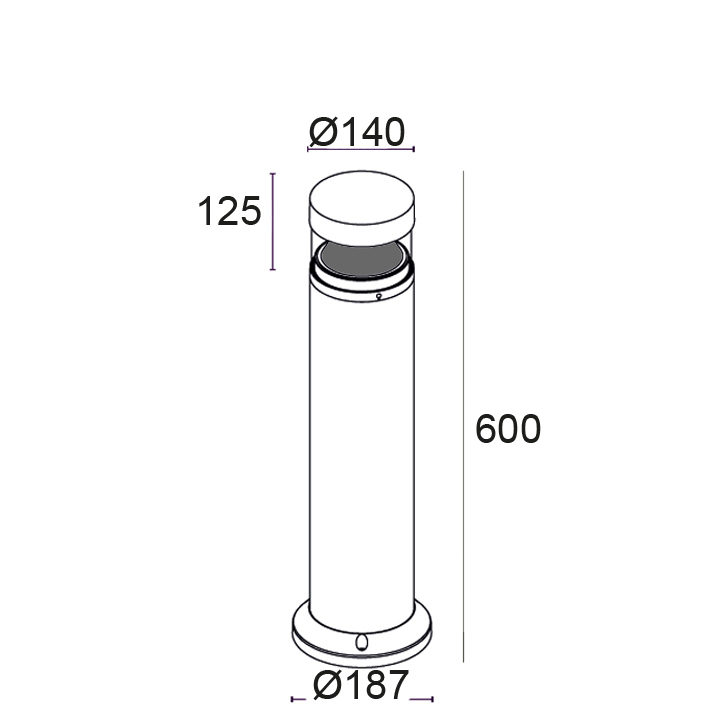

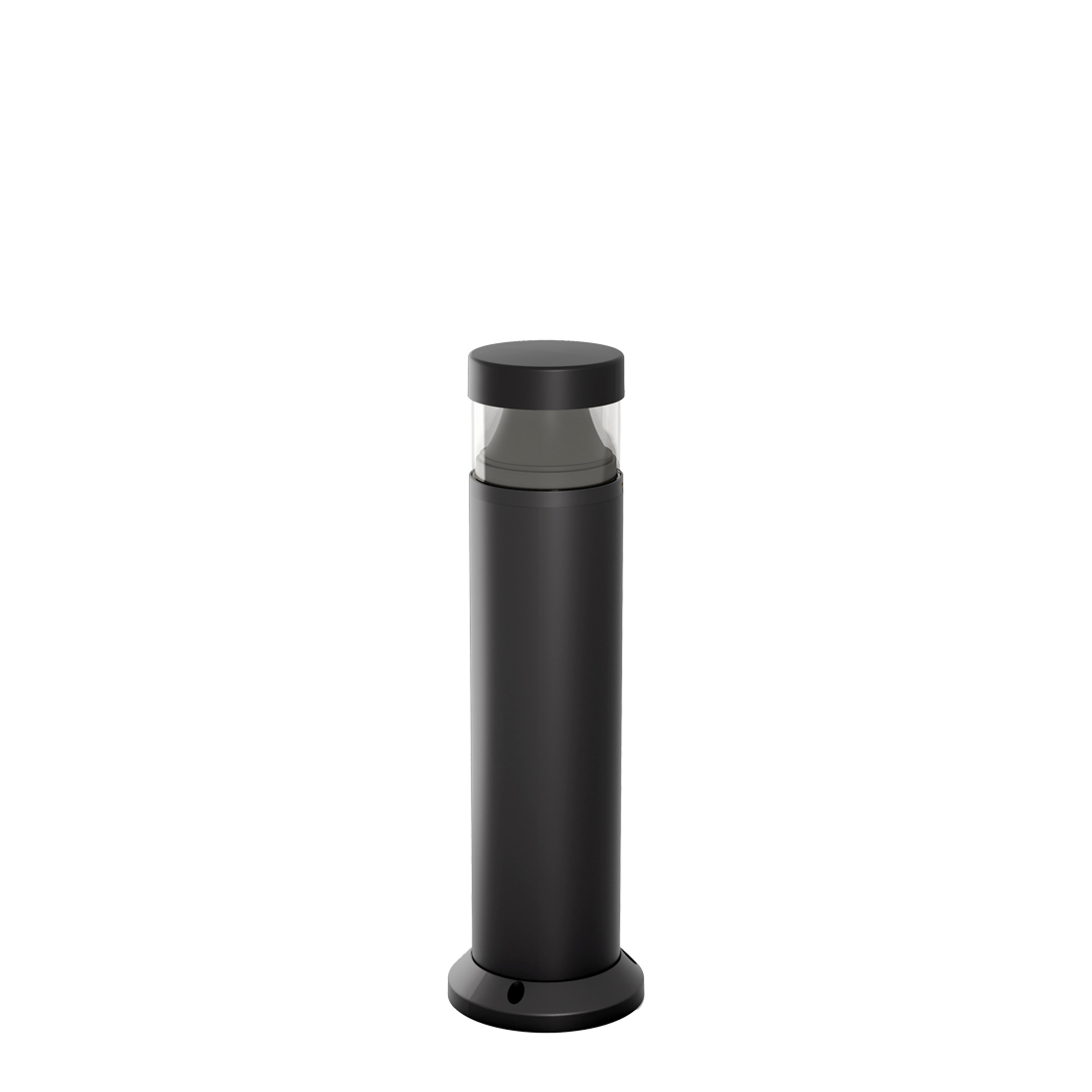

Bollard H. 600 Emission 360°/Black reflector
| Code | Beam | Class | IP | W | Power supply | Control | Fixture | CCT LED |
|---|---|---|---|---|---|---|---|---|
| 401F1/HR35.PT | Indirect/Diffused 360° |
II | 65 | 14W | 220-240Vac 50/60Hz | ON/OFF | 603 lm | 2700K |
| 401F1/WR35.PT | Indirect/Diffused 360° |
II | 65 | 14W | 220-240Vac 50/60Hz | ON/OFF | 635 lm | 3000K |
| 401F1/NR35.PT | Indirect/Diffused 360° |
II | 65 | 14W | 220-240Vac 50/60Hz | ON/OFF | 670 lm | 4000K |
Bollard TRIAC H. 600 Emission 360°/Black reflector
| Code | Beam | Class | IP | W | Power supply | Control | Fixture | CCT LED |
|---|---|---|---|---|---|---|---|---|
| 401F1/HR50.PT | Indirect/Diffused 360° |
II | 65 | 20W | 220-240Vac 50/60Hz | Phase cut dimmable | 855 lm | 2700K |
| 401F1/WR50.PT | Indirect/Diffused 360° |
II | 65 | 20W | 220-240Vac 50/60Hz | Phase cut dimmable | 900 lm | 3000K |
| 401F1/NR50.PT | Indirect/Diffused 360° |
II | 65 | 20W | 220-240Vac 50/60Hz | Phase cut dimmable | 950 lm | 4000K |

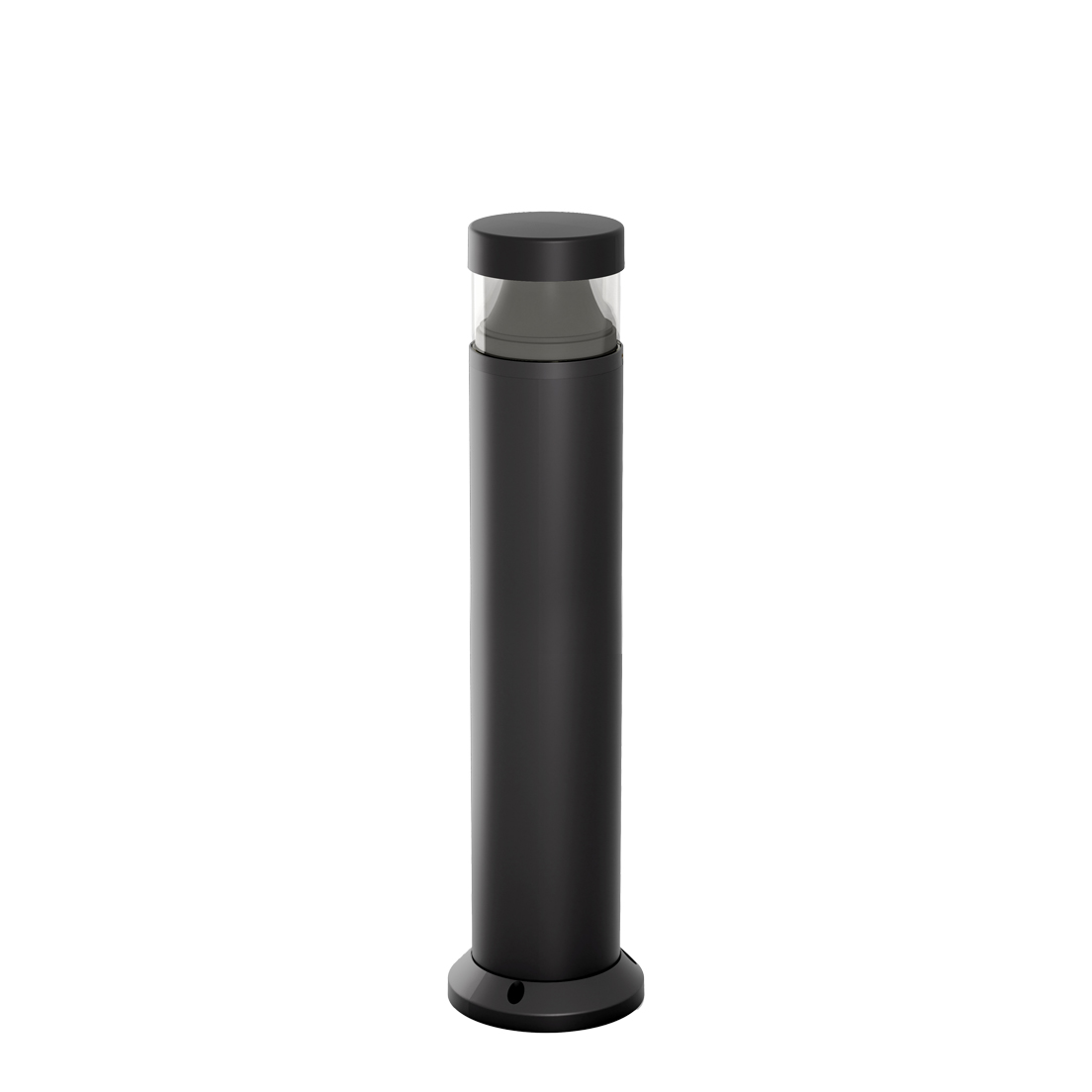

Bollard H. 1000 Emission 360°/Black reflector
| Code | Beam | Class | IP | W | Power supply | Control | Fixture | CCT LED |
|---|---|---|---|---|---|---|---|---|
| 401F2/HR35.PT | Indirect/Diffused 360° |
II | 65 | 14W | 220-240Vac 50/60Hz | ON/OFF | 603 lm | 2700K |
| 401F2/WR35.PT | Indirect/Diffused 360° |
II | 65 | 14W | 220-240Vac 50/60Hz | ON/OFF | 635 lm | 3000K |
| 401F2/NR35.PT | Indirect/Diffused 360° |
II | 65 | 14W | 220-240Vac 50/60Hz | ON/OFF | 670 lm | 4000K |
Bollard TRIAC H. 1000 Emission 360°/Black reflector
| Code | Beam | Class | IP | W | Power supply | Control | Fixture | CCT LED |
|---|---|---|---|---|---|---|---|---|
| 401F2/HR50.PT | Indirect/Diffused 360° |
II | 65 | 20W | 220-240Vac 50/60Hz | Phase cut dimmable | 855 lm | 2700K |
| 401F2/WR50.PT | Indirect/Diffused 360° |
II | 65 | 20W | 220-240Vac 50/60Hz | Phase cut dimmable | 900 lm | 3000K |
| 401F2/NR50.PT | Indirect/Diffused 360° |
II | 65 | 20W | 220-240Vac 50/60Hz | Phase cut dimmable | 950 lm | 4000K |
Bollard H. 350 Emission 180°/Black reflector
| Code | Beam | Class | IP | W | Power supply | Control | Fixture | CCT LED |
|---|---|---|---|---|---|---|---|---|
| 403F0/HR35.PT |  Indirect/Diffused 180° |
II | 65 | 14W | 220-240Vac 50/60Hz | ON/OFF | 465 lm | 2700K |
| 403F0/WR35.PT | Indirect/Diffused 180° |
II | 65 | 14W | 220-240Vac 50/60Hz | ON/OFF | 490 lm | 3000K |
| 403F0/NR35.PT | Indirect/Diffused 180° |
II | 65 | 14W | 220-240Vac 50/60Hz | ON/OFF | 515 lm | 4000K |
Bollard TRIAC H. 350 Emission 180°/Black reflector
| Code | Beam | Class | IP | W | Power supply | Control | Fixture | CCT LED |
|---|---|---|---|---|---|---|---|---|
| 403F0/HR50.PT | Indirect/Diffused 180° |
II | 65 | 20W | 220-240Vac 50/60Hz | Phase cut dimmable | 550 lm | 2700K |
| 403F0/WR50.PT | Indirect/Diffused 180° |
II | 65 | 20W | 220-240Vac 50/60Hz | Phase cut dimmable | 490 lm | 3000K |
| 403F0/NR50.PT | Indirect/Diffused 180° |
II | 65 | 20W | 220-240Vac 50/60Hz | Phase cut dimmable | 515 lm | 4000K |
Bollard H. 600 Emission 180°/Black reflector
| Code | Beam | Class | IP | W | Power supply | Control | Fixture | CCT LED |
|---|---|---|---|---|---|---|---|---|
| 403F1/HR35.PT | Indirect/Diffused 180° |
II | 65 | 14W | 220-240Vac 50/60Hz | ON/OFF | 465 lm | 2700K |
| 403F1/WR35.PT | Indirect/Diffused 180° |
II | 65 | 14W | 220-240Vac 50/60Hz | ON/OFF | 490 lm | 3000K |
| 403F1/NR35.PT | Indirect/Diffused 180° |
II | 65 | 14W | 220-240Vac 50/60Hz | ON/OFF | 515 lm | 4000K |
Bollard TRIAC H. 600 Emission 180°/Black reflector
| Code | Beam | Class | IP | W | Power supply | Control | Fixture | CCT LED |
|---|---|---|---|---|---|---|---|---|
| 403F1/HR50.PT | Indirect/Diffused 180° |
II | 65 | 20W | 220-240Vac 50/60Hz | Phase cut dimmable | 550 lm | 2700K |
| 403F1/WR50.PT | Indirect/Diffused 180° |
II | 65 | 20W | 220-240Vac 50/60Hz | Phase cut dimmable | 490 lm | 3000K |
| 403F1/NR50.PT | Indirect/Diffused 180° |
II | 65 | 20W | 220-240Vac 50/60Hz | Phase cut dimmable | 515 lm | 4000K |
Bollard H. 1000 Emission 180°/Black reflector
| Code | Beam | Class | IP | W | Power supply | Control | Fixture | CCT LED |
|---|---|---|---|---|---|---|---|---|
| 403F2/HR35.PT | Indirect/Diffused 180° |
II | 65 | 14W | 220-240Vac 50/60Hz | ON/OFF | 465 lm | 2700K |
| 403F2/WR35.PT | Indirect/Diffused 180° |
II | 65 | 14W | 220-240Vac 50/60Hz | ON/OFF | 490 lm | 3000K |
| 403F2/NR35.PT | Indirect/Diffused 180° |
II | 65 | 14W | 220-240Vac 50/60Hz | ON/OFF | 515 lm | 4000K |
Bollard TRIAC H. 1000 Emission 180°/Black reflector
| Code | Beam | Class | IP | W | Power supply | Control | Fixture | CCT LED |
|---|---|---|---|---|---|---|---|---|
| 403F2/HR50.PT | Indirect/Diffused 180° |
II | 65 | 20W | 220-240Vac 50/60Hz | Phase cut dimmable | 550 lm | 2700K |
| 403F2/WR50.PT | Indirect/Diffused 180° |
II | 65 | 20W | 220-240Vac 50/60Hz | Phase cut dimmable | 490 lm | 3000K |
| 403F2/NR50.PT | Indirect/Diffused 180° |
II | 65 | 20W | 220-240Vac 50/60Hz | Phase cut dimmable | 515 lm | 4000K |
