Twin 280 Wall luminaire

Surface mounted luminaire suitable for wall and ceiling installation. Twin has the unique feature of illuminating the surrounding surface through two lateral openings. Available in two sizes, with diffusing screen and light shielding element. The curved diffuser follows the line of the aluminium body, thus giving a visual compactness to the luminaire, and a very limited protusion compared to the installation plan.

Installation Type
Wall or ceiling installation

Body
Die-cast aluminium

Screen
Opal polycarbonate

Seals
EPDM

Screws
Stainless steel A2

Paint
Anti-corrosive UV stabilized polyester powder

Wall luminaire Ø280 Diffuse Emission

Wall luminaire Ø280 Diffuse Emission Twin 280

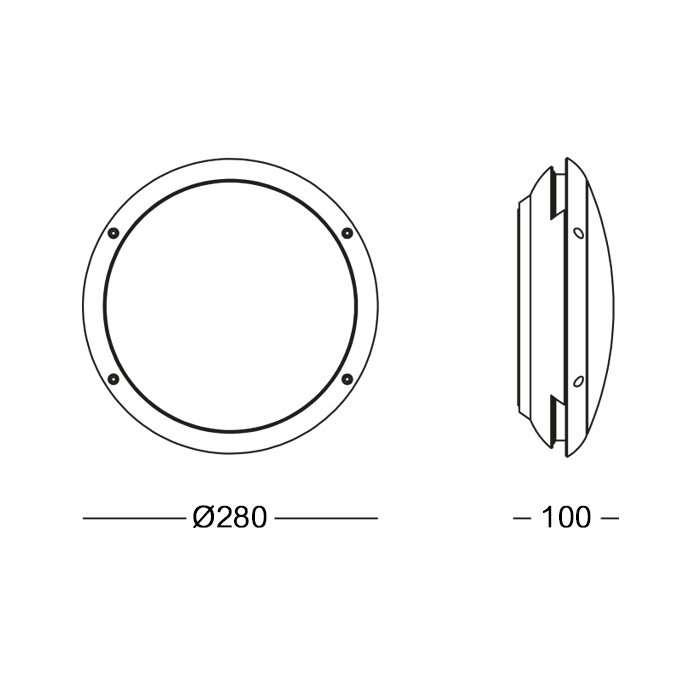

Wall luminaire Ø280 Diffuse Emission Twin 280 - Technical drawing
Code Beam Class IP W Power supply Control Fixture CCT LED
8101C/HC3.PO DIFFP360 Diffused >100° I 65 19W 220-240Vac 50/60Hz ON/OFF 774 lm 2700K
8101C/WC3.PO DIFFP360 Diffused >100° I 65 19W 220-240Vac 50/60Hz ON/OFF 774 lm 3000K
8101C/NC3.PO DIFFP360 Diffused >100° I 65 19W 220-240Vac 50/60Hz ON/OFF 818 lm 4000K

Wall luminaire DALI Ø280 Diffuse Emission

Wall luminaire DALI Ø280 Diffuse Emission Twin 280
Wall luminaire DALI Ø280 Diffuse Emission Twin 280 - Technical drawing
Code Beam Class IP W Power supply Control Fixture CCT LED
8101C/HD3.PO DIFFP360 Diffused >100° I 65 19W 220-240Vac 50/60Hz DALI-2 integrated 774 lm 2700K
8101C/WD3.PO DIFFP360 Diffused >100° I 65 19W 220-240Vac 50/60Hz DALI-2 integrated 774 lm 3000K
8101C/ND3.PO DIFFP360 Diffused >100° I 65 19W 220-240Vac 50/60Hz DALI-2 integrated 818 lm 4000K

Wall luminaire Ø280 Diffuse Emission with shielding

Wall luminaire Ø280 Diffuse Emission with shielding Twin 280

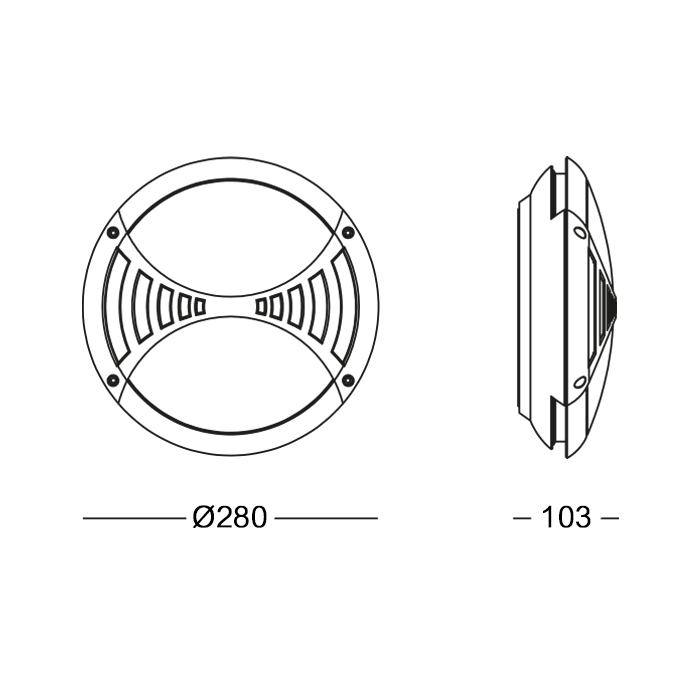

Wall luminaire Ø280 Diffuse Emission with shielding Twin 280 - Technical drawing
Code Beam Class IP W Power supply Control Fixture CCT LED
8100C/HC3.PO DIFFP360 Diffused >100° I 65 19W 220-240Vac 50/60Hz ON/OFF 595 lm 2700K
8100C/WC3.PO DIFFP360 Diffused >100° I 65 19W 220-240Vac 50/60Hz ON/OFF 595 lm 3000K
8100C/NC3.PO DIFFP360 Diffused >100° I 65 19W 220-240Vac 50/60Hz ON/OFF 630 lm 4000K

Wall luminaire DALI Ø280 Diffuse Emission with shielding

Wall luminaire DALI Ø280 Diffuse Emission with shielding Twin 280
Wall luminaire DALI Ø280 Diffuse Emission with shielding Twin 280 - Technical drawing
Code Beam Class IP W Power supply Control Fixture CCT LED
8100C/HD3.PO DIFFP360 Diffused >100° I 65 19W 220-240Vac 50/60Hz DALI-2 integrated 595 lm 2700K
8100C/WD3.PO DIFFP360 Diffused >100° I 65 19W 220-240Vac 50/60Hz DALI-2 integrated 595 lm 3000K
8100C/ND3.PO DIFFP360 Diffused >100° I 65 19W 220-240Vac 50/60Hz DALI-2 integrated 630 lm 4000K
