Twin 380
Share:

Twin 380 Wall luminaire

Surface mounted luminaire suitable for wall and ceiling installation. Twin has the unique feature of illuminating the surrounding surface through two lateral openings. Available in two sizes, with diffusing screen and light shielding element. The curved diffuser follows the line of the aluminium body, thus giving a visual compactness to the luminaire, and a very limited protusion compared to the installation plan.

Installation Type
Wall or ceiling installation

Body
Die-cast aluminium

Screen
Opal polycarbonate

Seals
EPDM

Screws
Stainless steel A2

Paint
Anti-corrosive UV stabilized polyester powder

Wall luminaire Ø380 Diffuse Emission

Wall luminaire Ø380 Diffuse Emission Twin 380

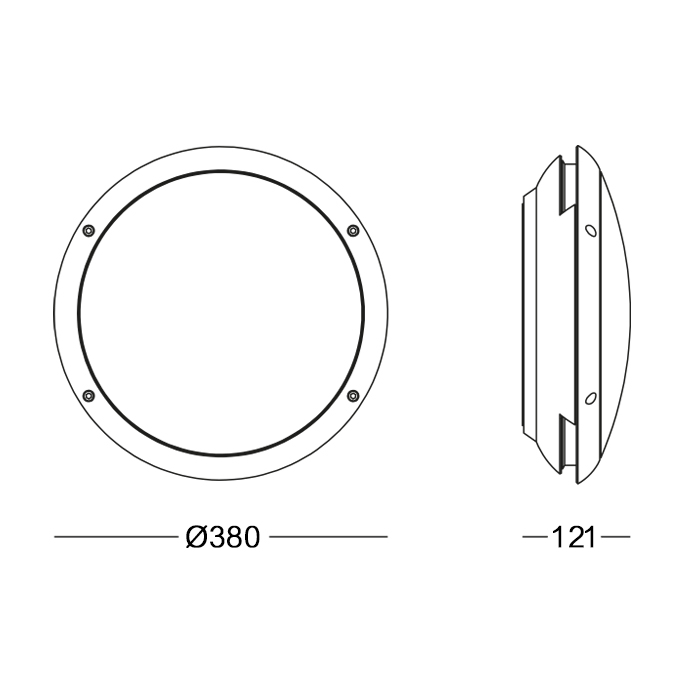

Wall luminaire Ø380 Diffuse Emission Twin 380 - Technical drawing
Code Beam Class IP W Power supply Control Fixture CCT LED
8001C/HC3.PO DIFFP360 Diffused >100° I 65 29W 220-240Vac 50/60Hz ON/OFF 1690 lm 2700K
8001C/WC3.PO DIFFP360 Diffused >100° I 65 29W 220-240Vac 50/60Hz ON/OFF 1690 lm 3000K
8001C/NC3.PO DIFFP360 Diffused >100° I 65 29W 220-240Vac 50/60Hz ON/OFF 1771 lm 4000K

Wall luminaire DALI Ø380 Diffuse Emission

Wall luminaire DALI Ø380 Diffuse Emission Twin 380
Wall luminaire DALI Ø380 Diffuse Emission Twin 380 - Technical drawing
Code Beam Class IP W Power supply Control Fixture CCT LED
8001C/HD3.PO DIFFP360 Diffused >100° I 65 29W 220-240Vac 50/60Hz DALI-2 integrated 1690 lm 2700K
8001C/WD3.PO DIFFP360 Diffused >100° I 65 29W 220-240Vac 50/60Hz DALI-2 integrated 1690 lm 3000K
8001C/ND3.PO DIFFP360 Diffused >100° I 65 29W 220-240Vac 50/60Hz DALI-2 integrated 1771 lm 4000K

Wall luminaire Ø380 Diffuse Emission with shielding

Wall luminaire Ø380 Diffuse Emission with shielding Twin 380

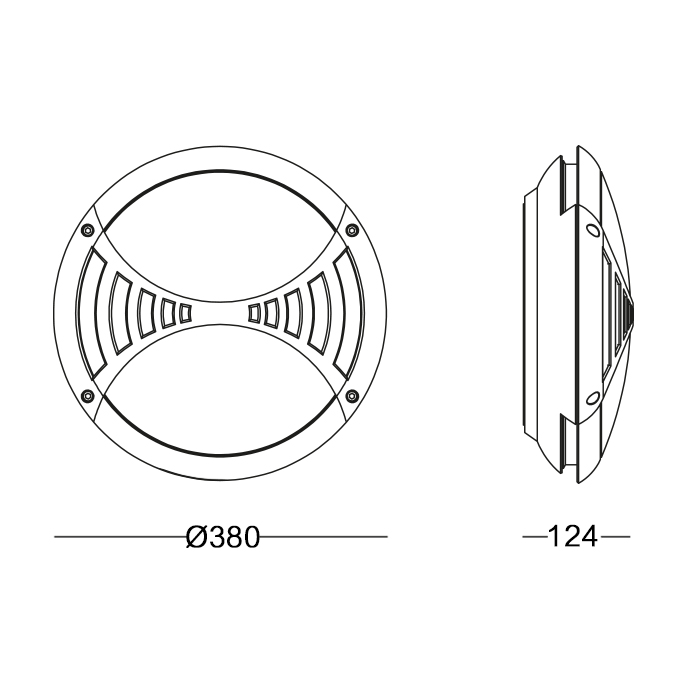

Wall luminaire Ø380 Diffuse Emission with shielding Twin 380 - Technical drawing
Code Beam Class IP W Power supply Control Fixture CCT LED
8000C/HC3.PO DIFFP360 Diffused >100° I 65 29W 220-240Vac 50/60Hz ON/OFF 1302 lm 2700K
8000C/WC3.PO DIFFP360 Diffused >100° I 65 29W 220-240Vac 50/60Hz ON/OFF 1302 lm 3000K
8000C/NC3.PO DIFFP360 Diffused >100° I 65 29W 220-240Vac 50/60Hz ON/OFF 1363 lm 4000K

Wall luminaire DALI Ø380 Diffuse Emission with shielding

Wall luminaire DALI Ø380 Diffuse Emission with shielding Twin 380
Wall luminaire DALI Ø380 Diffuse Emission with shielding Twin 380 - Technical drawing
Code Beam Class IP W Power supply Control Fixture CCT LED
8000C/HD3.PO DIFFP360 Diffused >100° I 65 29W 220-240Vac 50/60Hz DALI-2 integrated 1302 lm 2700K
8000C/WD3.PO DIFFP360 Diffused >100° I 65 29W 220-240Vac 50/60Hz DALI-2 integrated 1302 lm 3000K
8000C/ND3.PO DIFFP360 Diffused >100° I 65 29W 220-240Vac 50/60Hz DALI-2 integrated 1363 lm 4000K
